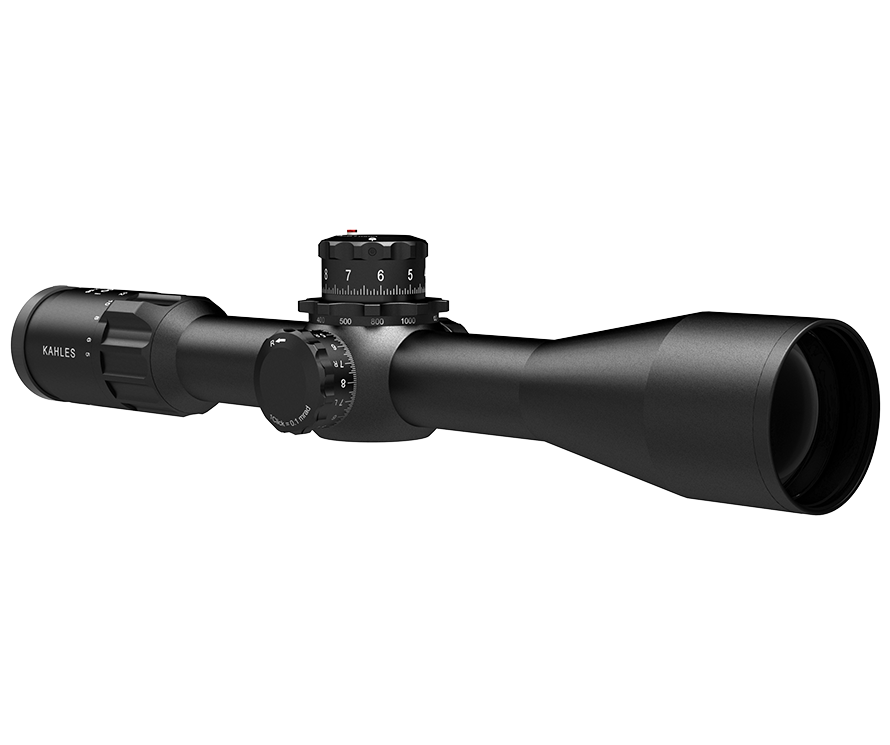

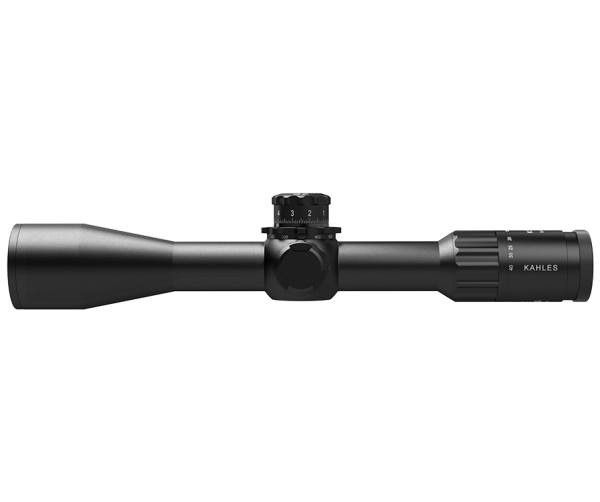

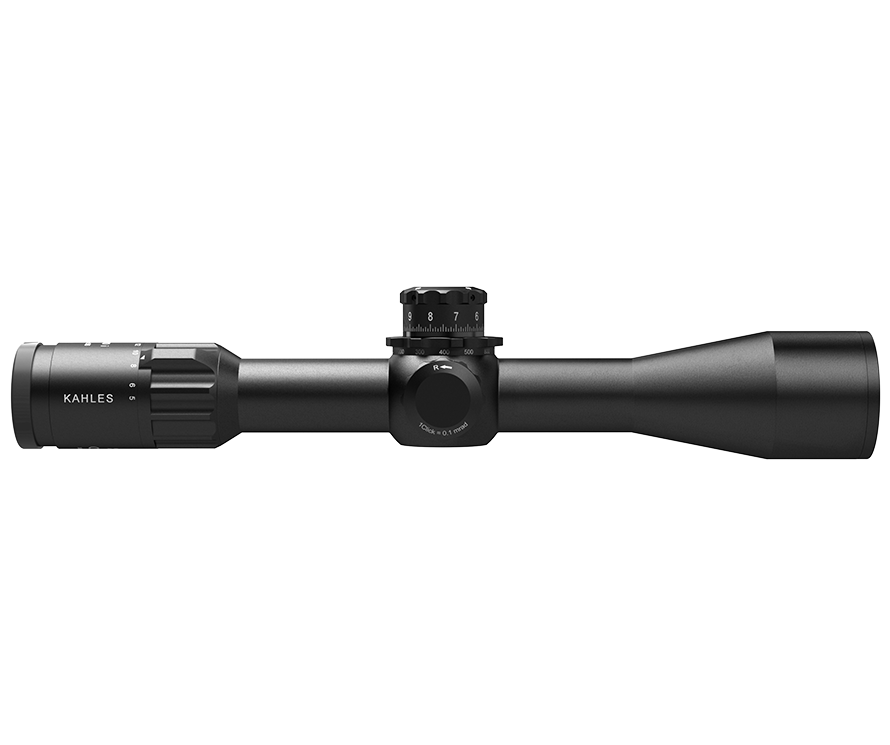

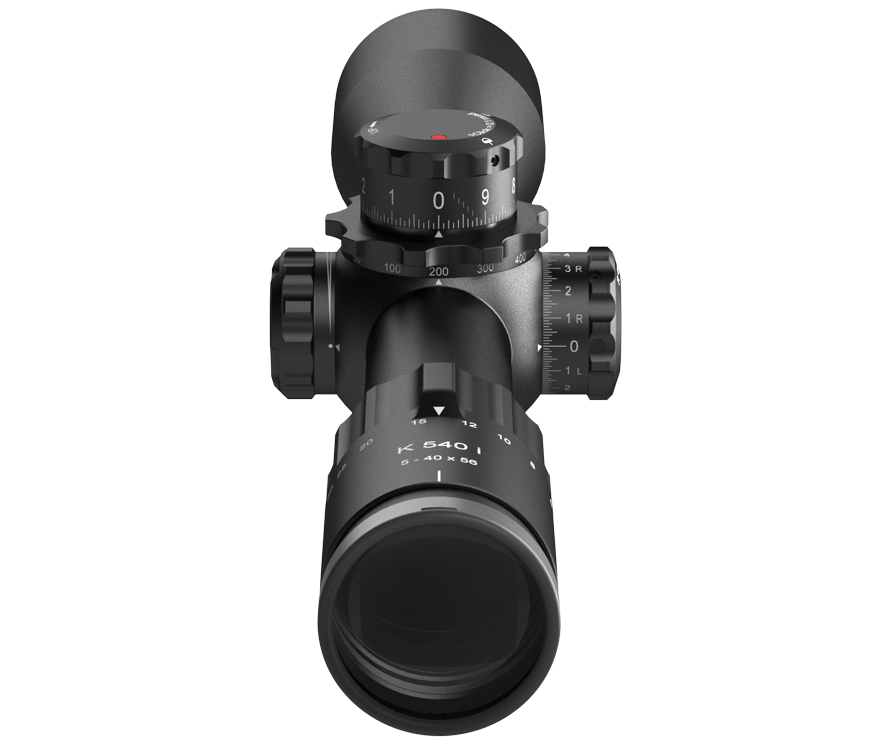

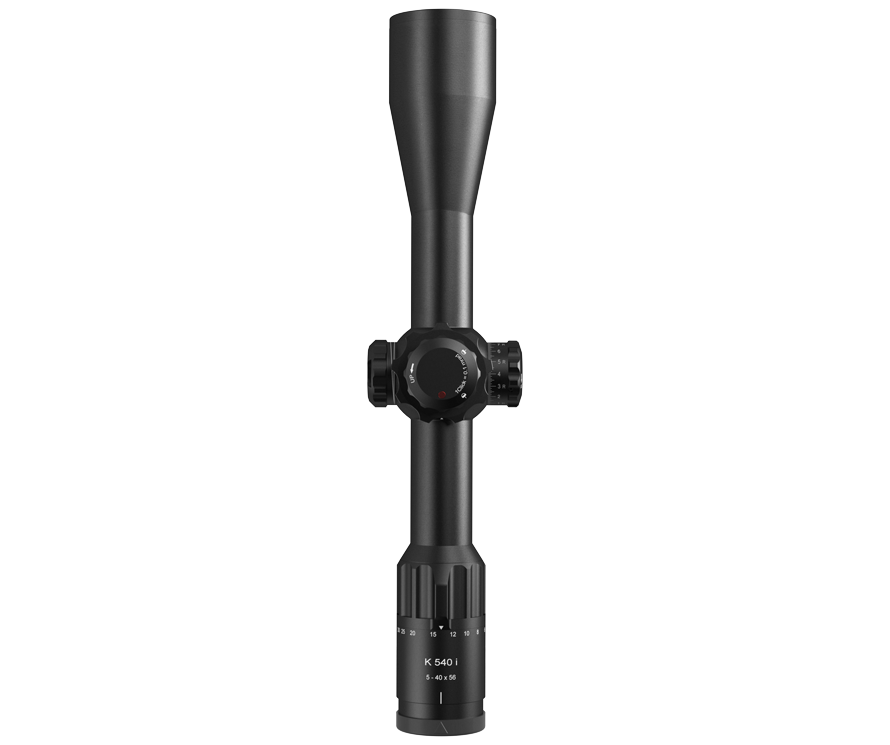

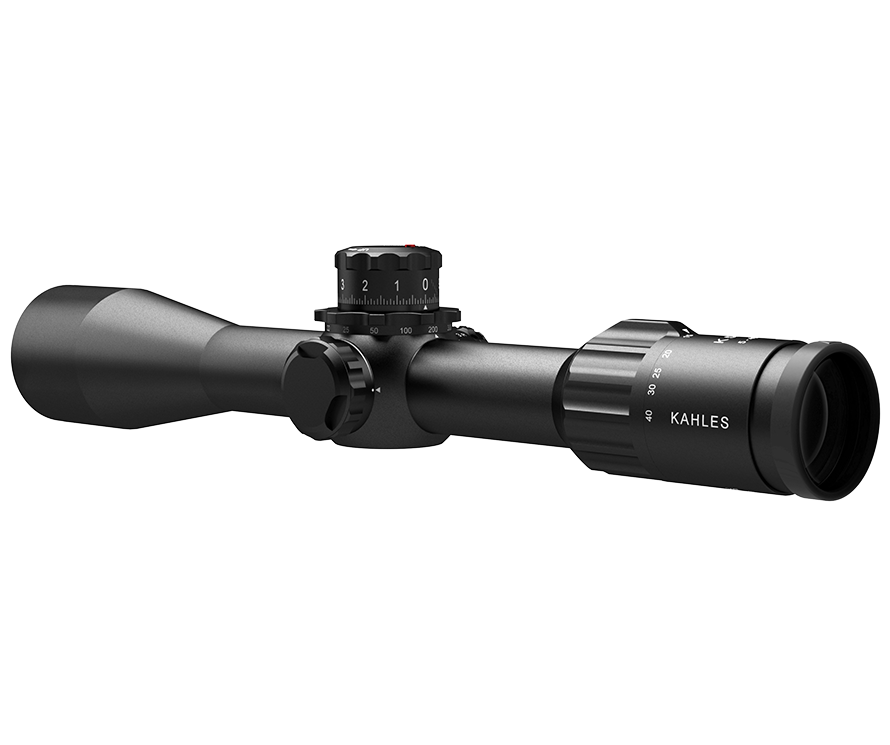

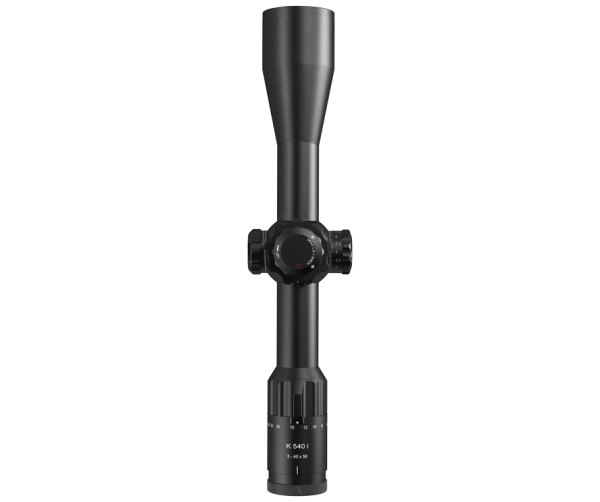

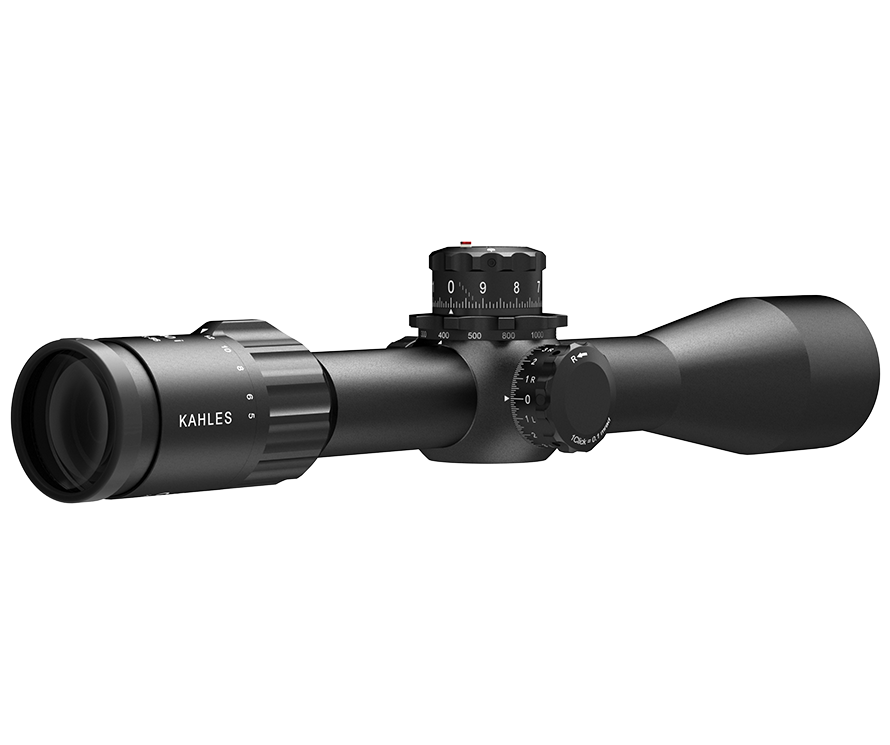

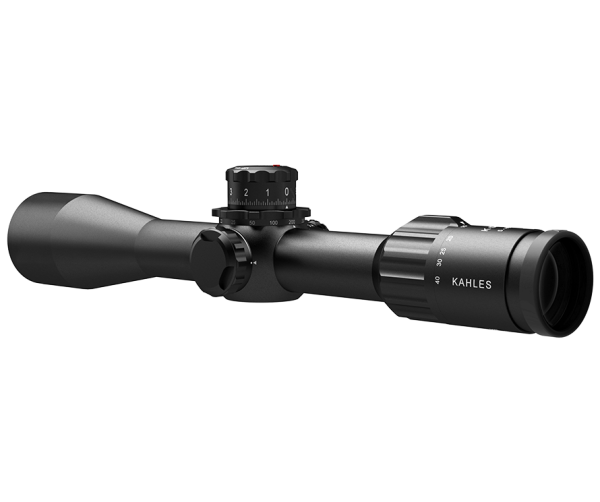

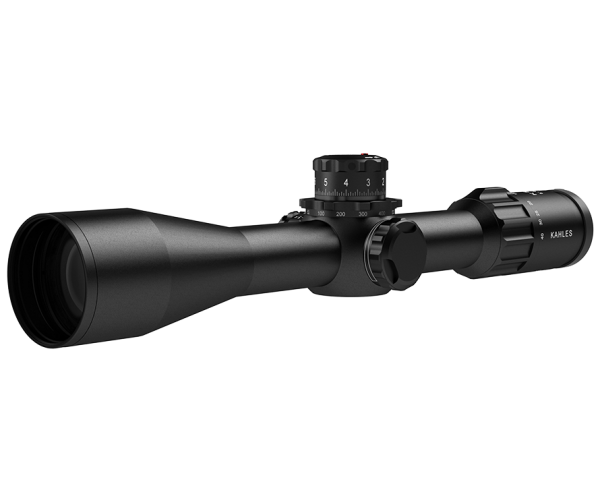

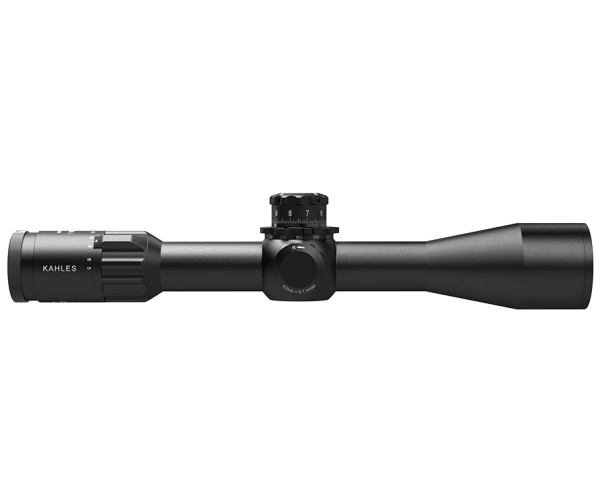

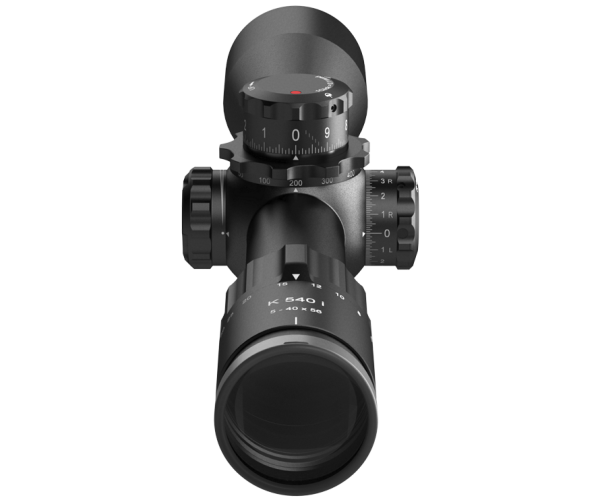

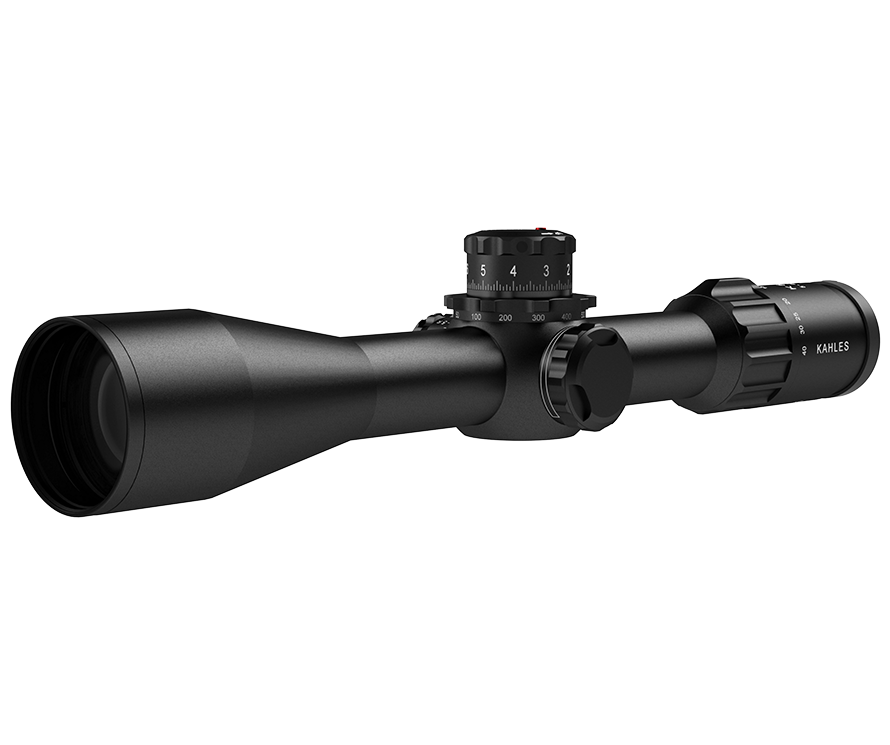

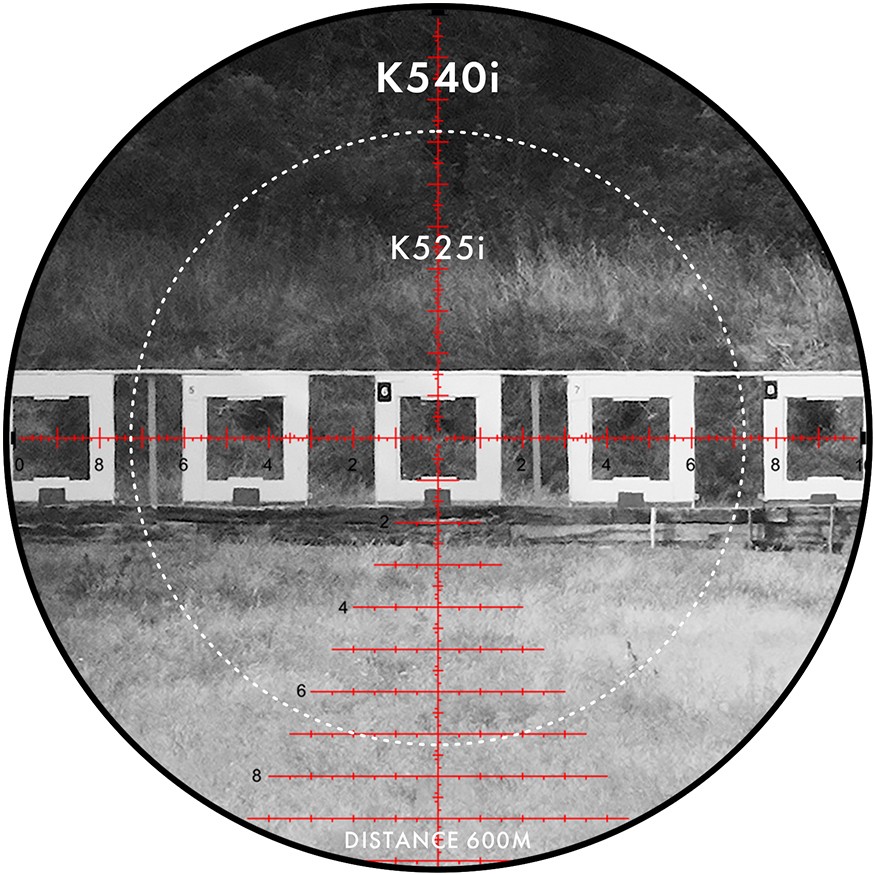

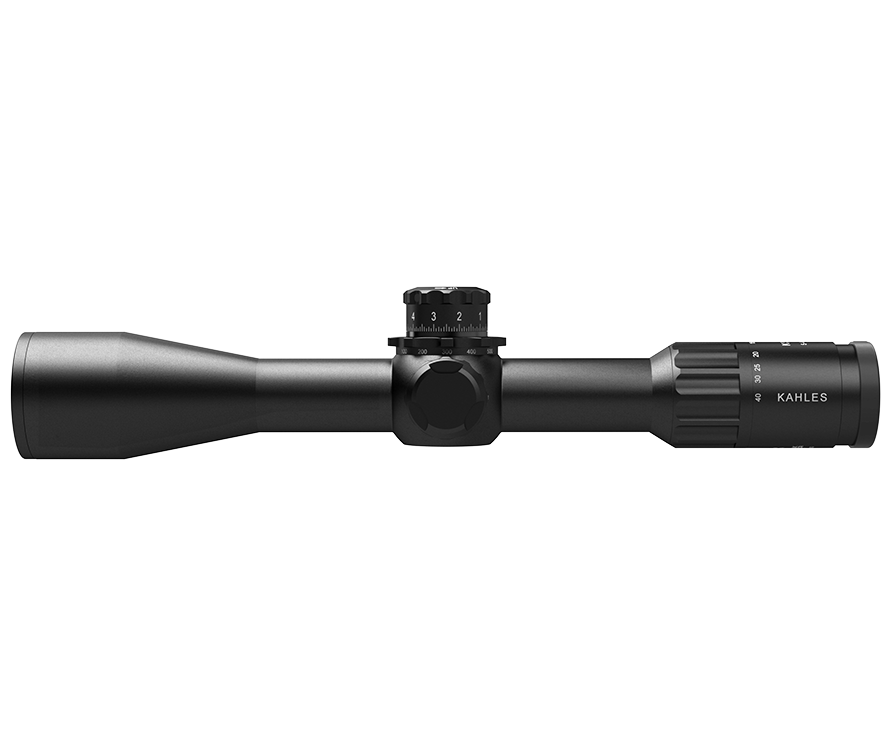

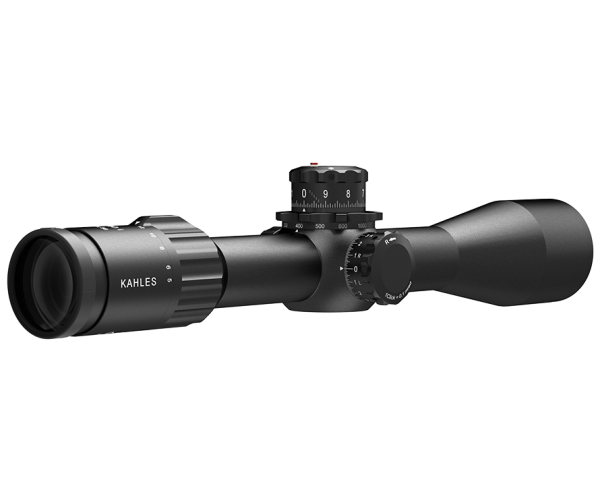

The groundbreaking K540i sets new performance standards with a pioneering new-generation optical design. It offers a 40 % wider field of view*, an exceptionally comfortable eyebox and 8 x zoom with perfect optical performance across the entire adjustment range.
*) Based on comparison with the K525i at 25x magnification.
With “EasyRead” elevation turret optimized specially for dynamic long-range competitions with an emphasis on speed.

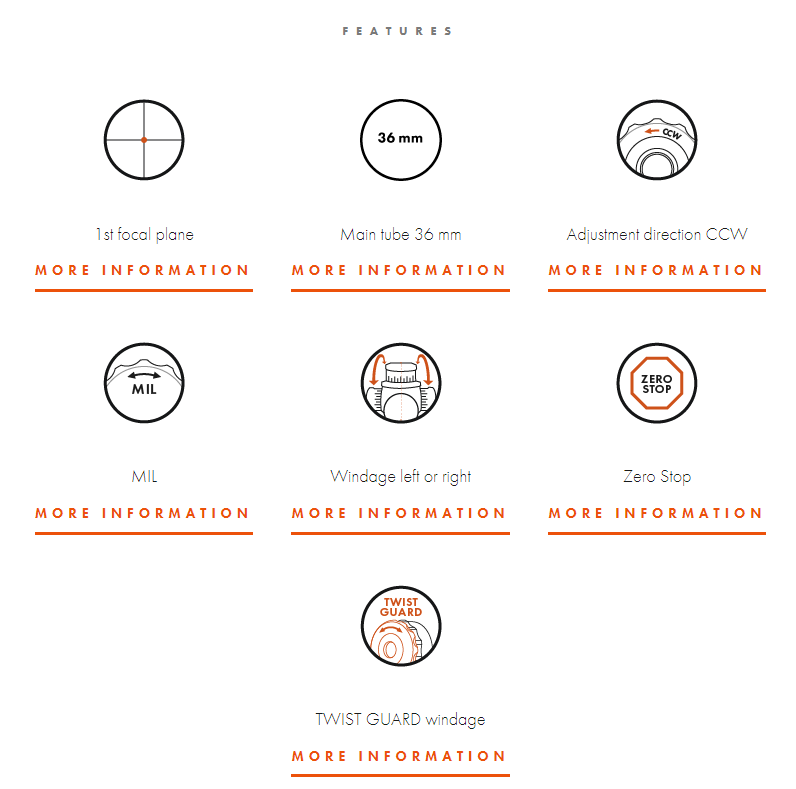

- Revolutionary optical design with a 40 % wider field of view*
- Perfect optical performance with 8x zoom over the entire adjustment range
- Exceptionally comfortable eyebox even at 40X magnification

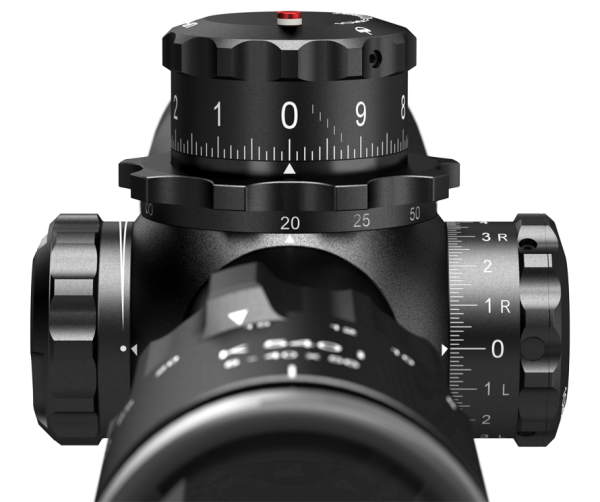

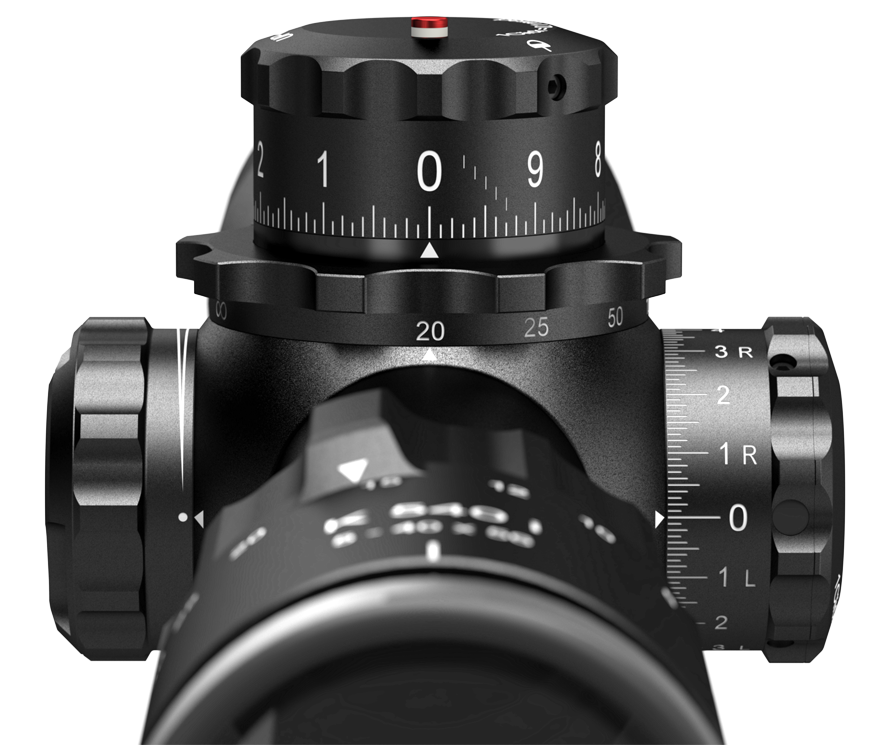

- Windage adjustment available left or right, patented parallax adjustment integrated in the elevation turret
- 100 clicks per rotation – absolutely reliable repeat accuracy and clearly defined clicks
- Extra-large turret lettering for easy and fast reading
- Precise illuminated reticle in 1st focal plane
| Magnification: | 5-40x56i |
| Objective lens diameter: | 56 mm |
| Exit pupil: | 1,4 – 7,7 mm |
| Eye relief: | 92 mm |
| Field of view: | 10.2 – 1.3 m/100 m |
| Diopter compensation: | +2 / -3 dpt |
| Twilight factor (DIN 58388): | 13.9 – 47.3 |
| Impact correction per click: | .1 MRAD |
| Adjustment range (E/W): | 2,9 / 1,2 m/100m |
| Parallax adjustment: | 20 m – ∞ |
| Tube diameter: | 36 mm |

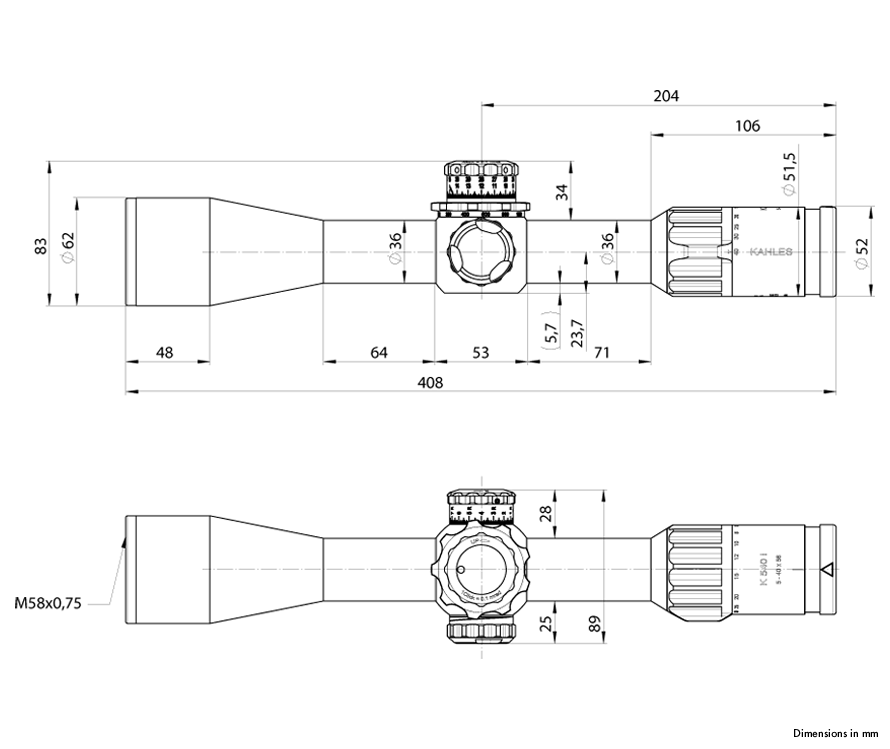

| Length: | 408 mm |
| Weight: | 1110 g |
| Focal plane: | 1. |
| Illuminated: | Yes |
| Warranty: | 10 (2 electronics) |
