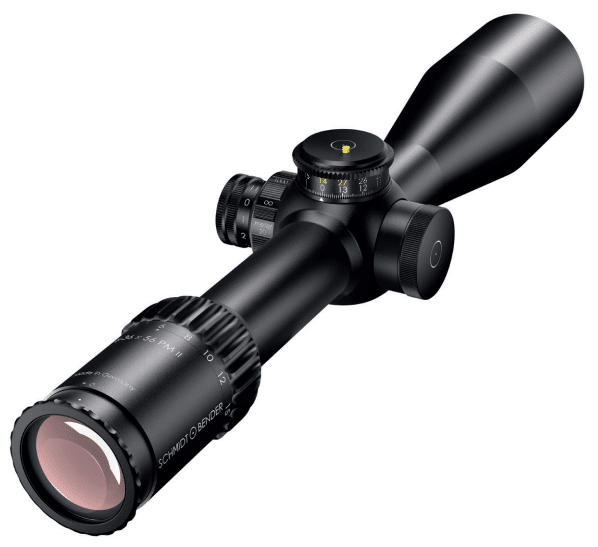

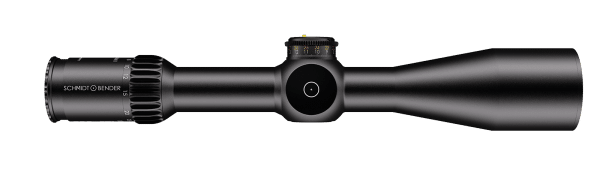

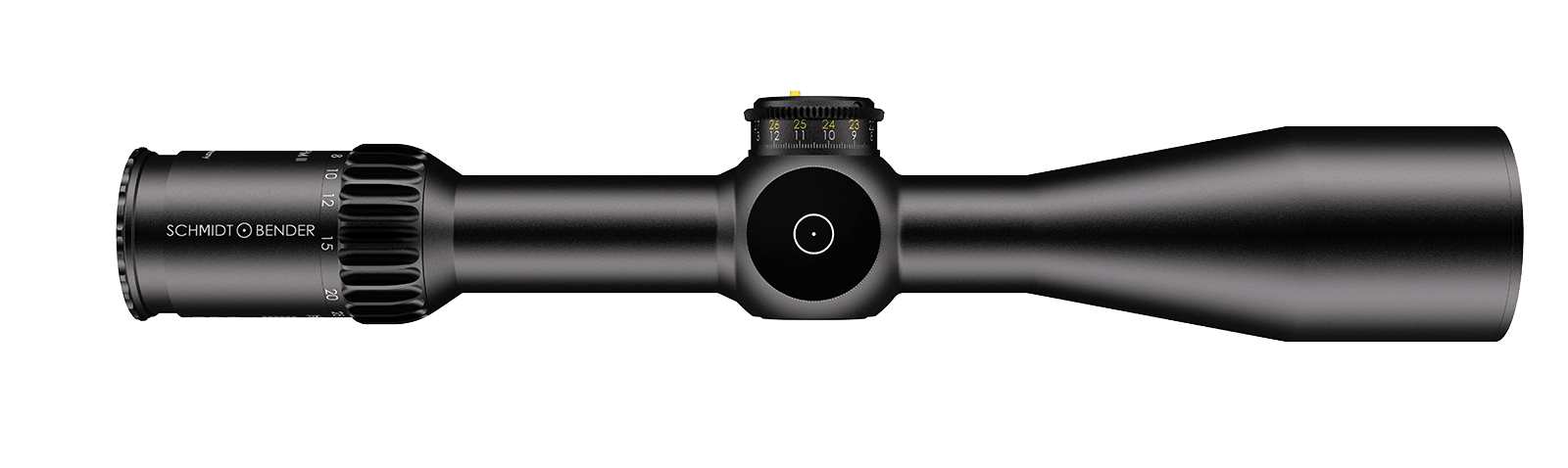

The new S&B 6-36×56 PM II High Performance offers the best solution for medium to extreme long-range shooting. Like all PM II riflescopes, the design and manufacture of this 6x zoom riflescope is according to MIL-STD-810G for handling the harshest environments. Outstanding image quality with a wide field-of-view (FOV) provides superior detail recognition. Reduced weight and size make it very compact while the new LPI illumination also enables left-handed use.
LPI (Illumination Parallax Integrated)
The 6-36×56 PM II High Performance now features the new “LPI” which stands for the German words “Leucht-Parallaxe-Integriert” and means “Illumination Parallax Integrated”.
This new and very easily operable illumination control is integrated into the parallax adjustment and allows a better mounting solution. It also enables a better left-handed use.
Although being very compact the illumination and the parallax adjustment show the familiar features:
- On the outer side the smaller and easy to operate illumination knob has 11 functional steps with “off” positions between each step.
- The bigger knob which is next to the tube operates the very precise side focus/parallax adjustment. It begins at 25 m/27 yd for close distances and goes up to infinity.
Both knobs are clearly distinguished by size and rippling while the engravings of each turret can be read or adjusted while in shooting position even with gloves.
Weight (g) | 940 – 995 |
Length (mm) | 390 |
Tube diameter (mm) | 34 |
Magnification | 6-36x |
Objective lens diameter (mm) | 56 |
Field of view (m) | 7.3 – 1.25 |
Field of view [USA] (m) | 6.2 – 1.05 |
Exit pupil (mm) | 8.3 – 1.6 |
Eye relief distance (mm) | 90 |
Twilight factor | 17.3 – 44.9 |
Transmission | >90 |
Focal plane | 1. |
Diopter | -3 to +2 |
Adjustment | DT27 MTC LT / ST ZC CT |
Adjustment value/Click | 0.1 MRAD |
Elevation (Turret) | 27 MRAD |
Windage (Turret) | ±6 MRAD |
Adjustment | DT35 MTC LT / ST ZC CT |
Adjustment value/Click | 0.1 MRAD |
Elevation (Turret) | 35 MRAD |
Windage (Turret) | ±6 MRAD |
Parallax adjustment | 20 m to ∞ |
Illumination | yes |
Waterproof (m) | 3 (10 / 20 / 25 on request) |
Temperature range | |
Storage | –55 bis +71 °C |
Function | –46 bis +61 °C |
Turret Types | CW/CCW |
Colors | Black / RAL8000 |
Reticles | P5FL, GR²ID |
