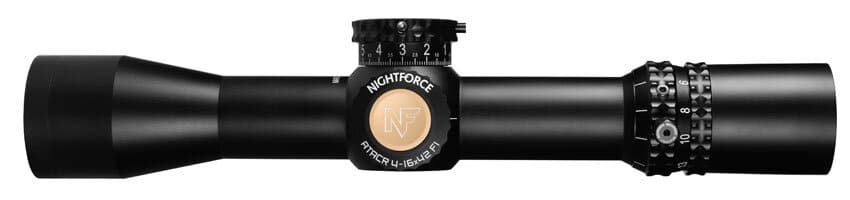

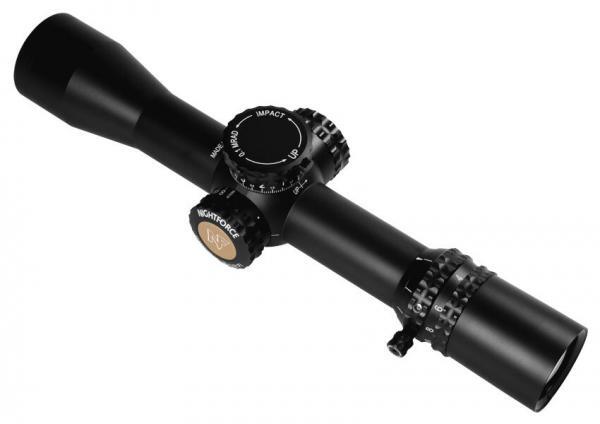

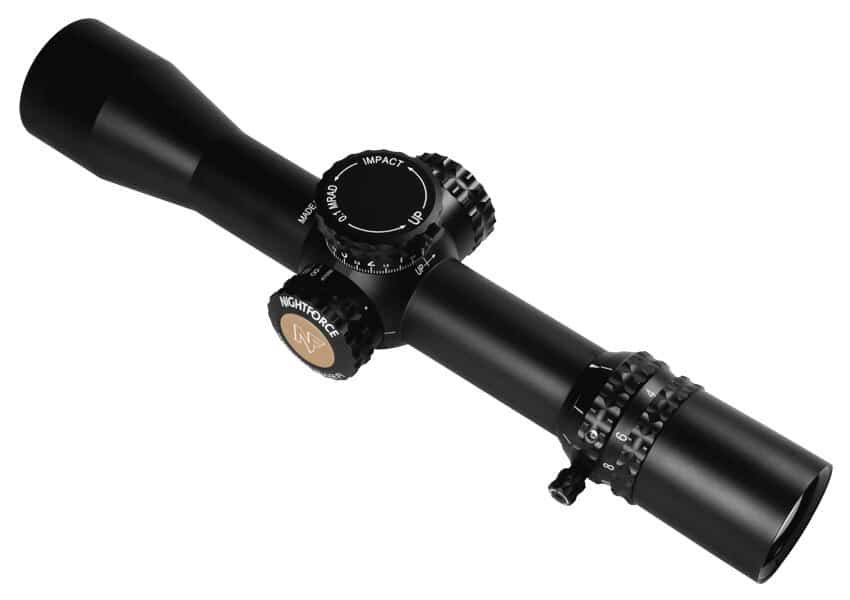

ATACR™ 4-16×42 F1 Riflescope
If you need something compact yet powerful, the ATACR 4-16×42 F1 delivers.
The fully multi-coated ED glass lenses within are stunning.
Adjustments are standard with the Nightforce low profile ZeroHold feature, and available in .1 Mrad (12 Mils per revolution) increments.
A capped windage adjustment helps prevent accidental adjustment in the field.
The parallax adjustment is marked with approximate numbered distances and is coupled with DigIllum digital reticle illumination.
The eyepiece features enhanced engraving, an integrated Power Throw Lever (PTL) and an XtremeSpeed thread for making a fast diopter adjustment.
All of these features are paired with intelligent, Nightforce F1, first focal plane, reticles that provide for fast hold-off adjustments and precise ranging calculations.
The ATACR 4-16×42 F1 sets a new standard in mid-powered optics.
Tenebraex Flip Covers are now included with ATACR™ riflescopes*.
| SPECIFICATIONS | ATACR 4-16×42 F1 |
|---|---|
| Focal Plane | First |
| Magnification Range | 4-16x |
| Objective lens diameter | 42mm |
| Tube diameter | 34mm/1.34in in |
| Internal adjustment range (MOA/Mil) | e: 89 MOA w: 60 MOA e: 26 Mil w: 18 Mil |
| Click value | .250 MOA .1 Mil-rad |
| Calibrated Ranging Power | N/A |
| Parallax adjustment | 45 yd–∞ |
| Exit pupil diameter | 4x:10.3mm 16x:2.7mm |
| Eye relief | 85-90mm/3.35-3.54 in |
| Field of view @100 yards/100 meters | 4x: 26.9ft 16x: 6.9ft 4x: 8.1m 16x: 2.1 m |
| Objective outer diameter | 50mm |
| Eyepiece outer diameter | 45 mm |
| Overall length (inches/mm) | 12.6in/320 mm |
| Weight (ounces/grams) | 30 oz/850g |
| Mounting length (inches/mm) | 6.3 in/160 mm |
| Front/Rear Mounting Length | 2.00 in/2.53 in |
| PTL (Power Throw Lever) | Standard |

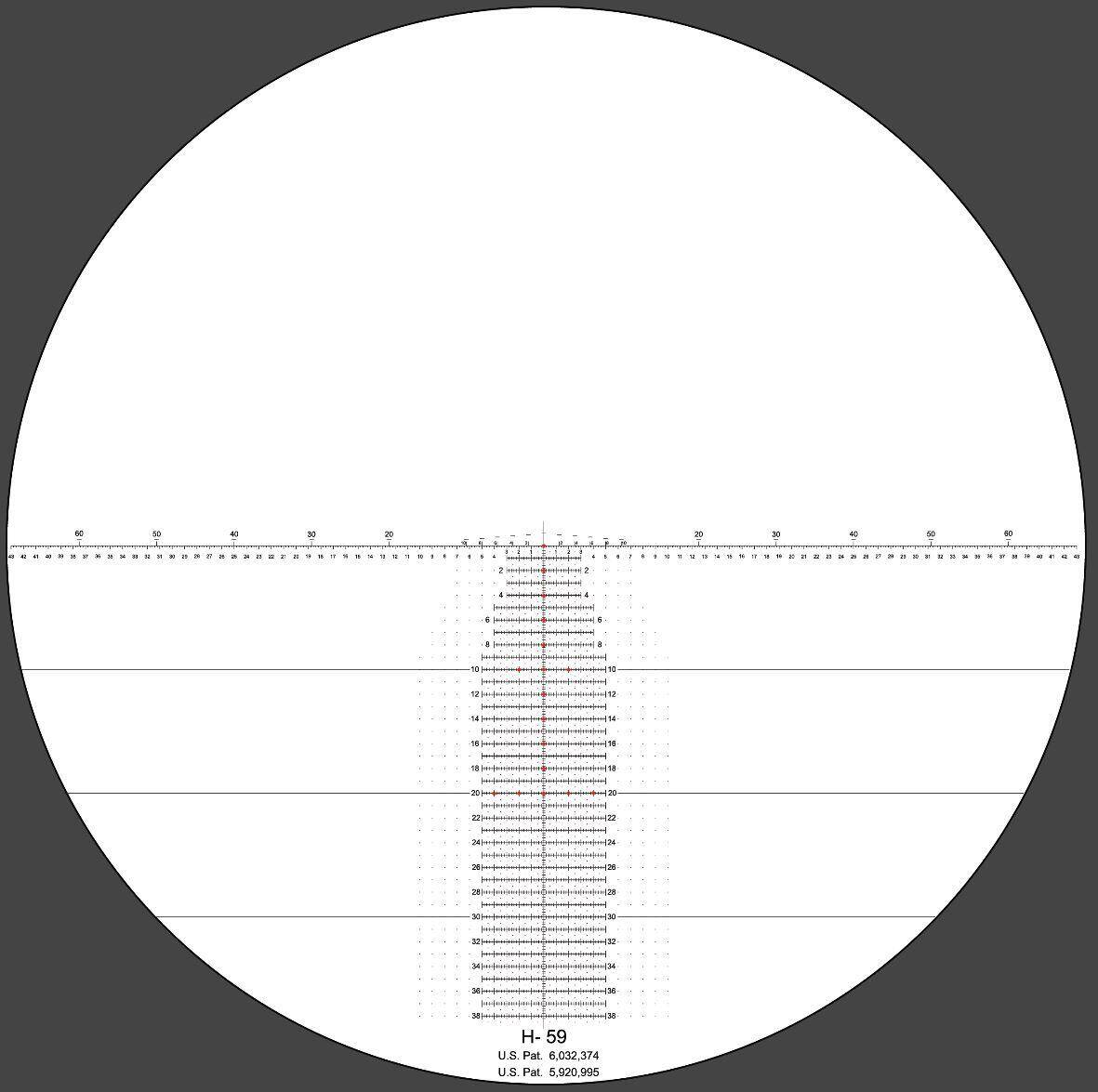

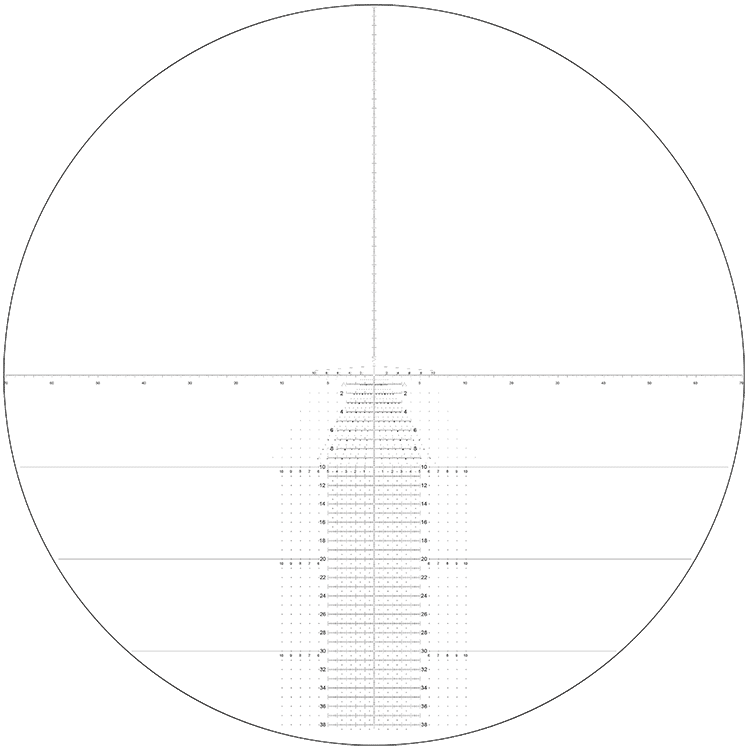

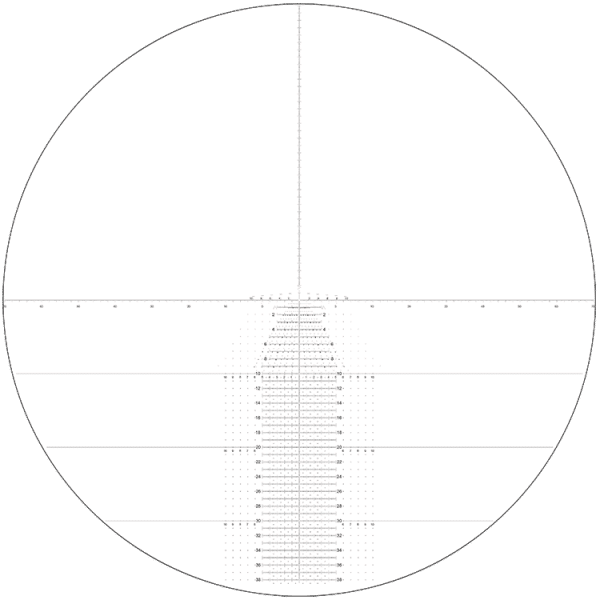

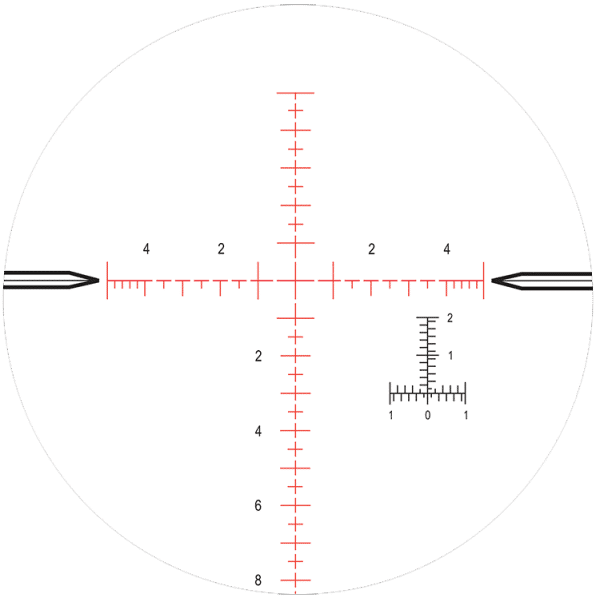

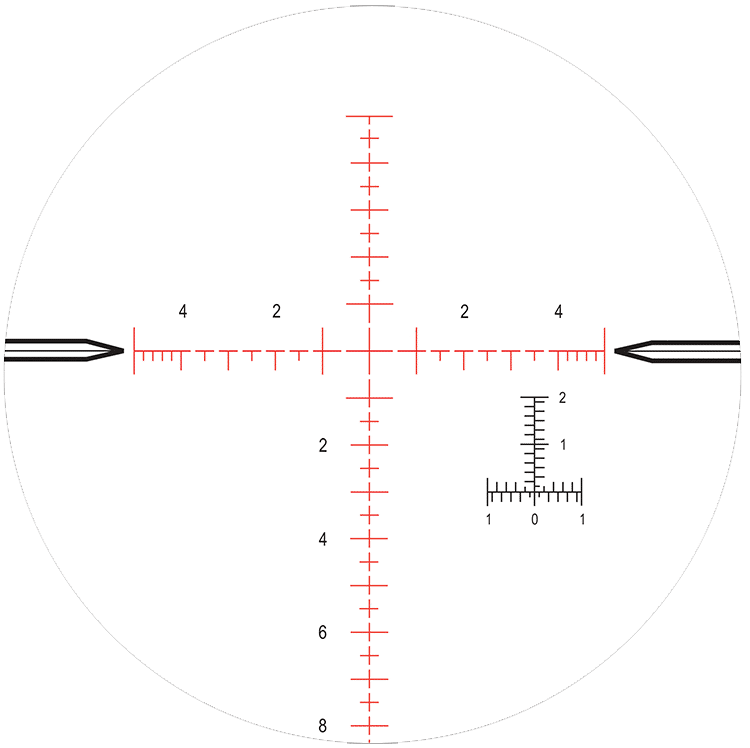

| Reticles available | MOARâ„¢ MIL-Râ„¢ MIL-Câ„¢ MIL-XTâ„¢ TReMoR3 * |
| Illumination |  (*Non-Illuminated) |
| Elevation Feature |  |
