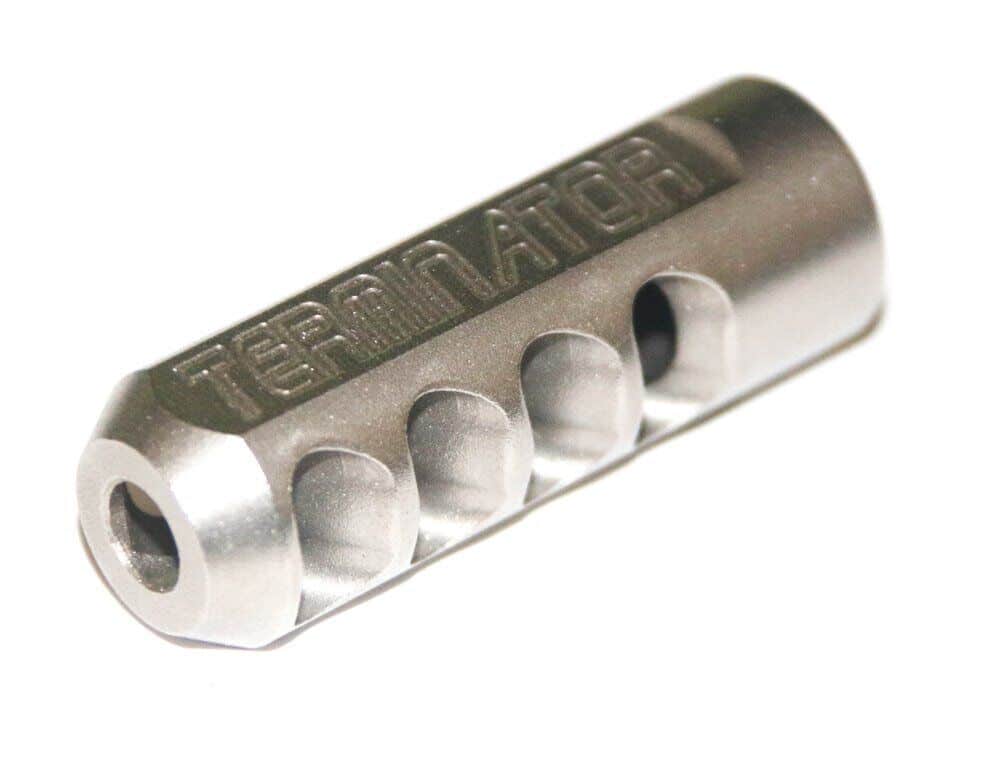

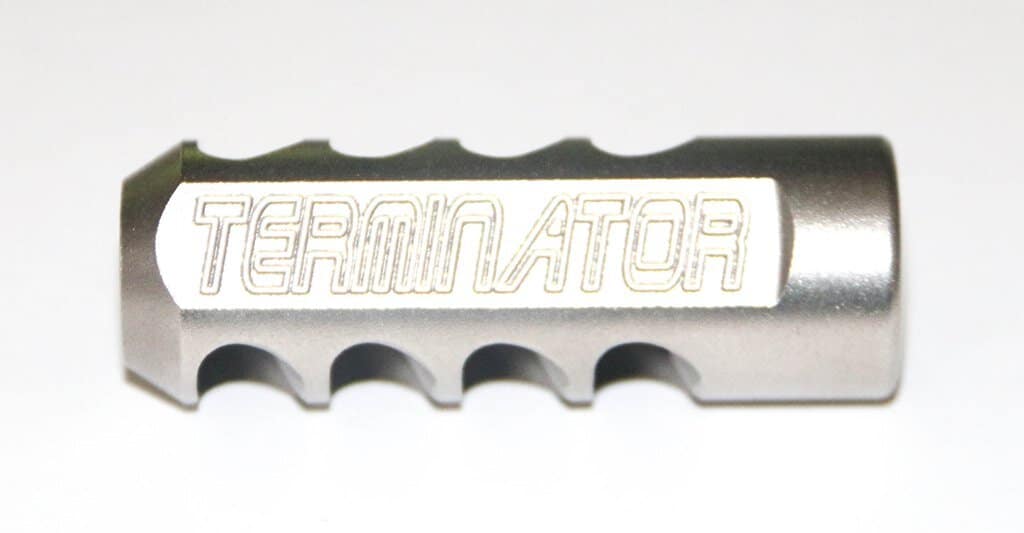

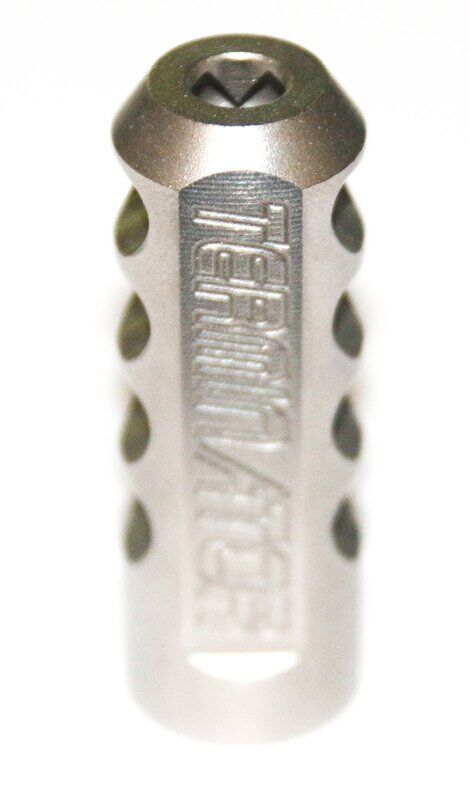

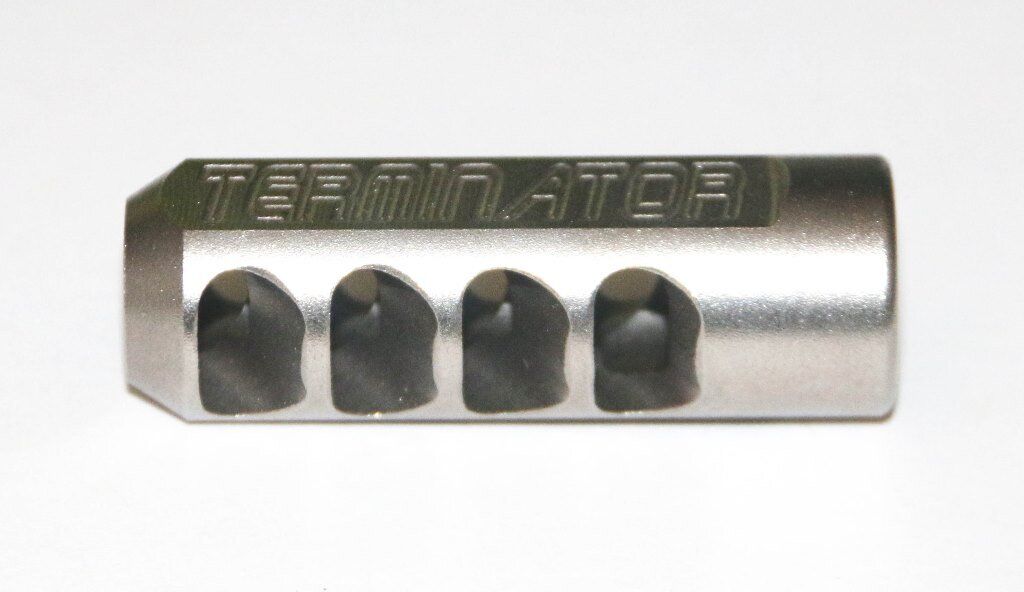

The T1 Muzzle Brake is the smallest brake offered by Terminator and recommended for 223 and smaller. Must be installed by a gunsmith.

• The T1 & T2 have 6.5mm hole for .224
• 17.2mm diameter, 50mm long, 35-40 gram
• 1/2″ x28 Thread

All brakes have flats for a spanner and so they can be easily fitted by the gunsmith.

The ports are 90 degrees to the ground to reduce ground disturbance and are angled back away from the shooter to minimise shooter discomfort and maximise performance.

The through hole requires opening up to 0.025-0.030″ over calibre size and it is recommended the rear of the brake be tapered down to the muzzle diameter.
