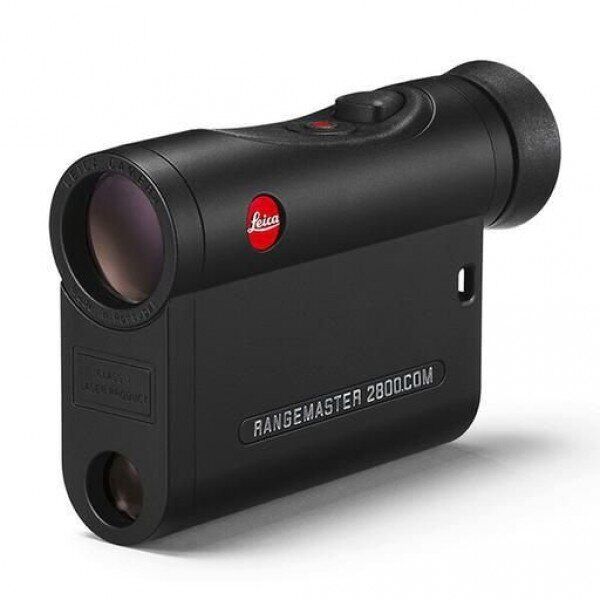

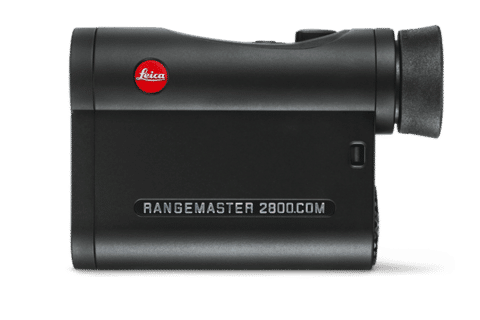

Leica Rangemaster CRF 2800.COM
Leica CRF Rangemasters have been an essential aide for field sportsmen for many years now. They combine high-quality optics with durable mechanics and complex electronics in an extremely compact design. Like all other Leica Rangemaster rangefinders, they always meet precise parameter determination standards – anytime and anywhere. This way, they support every hunter and provide answers to of his essential questions. In a record-breaking time of 0.3 seconds, Rangemasters determine all the important parameters with maximum precision and ensure the necessary safety for accurate shots. Thanks to their compact form, Leica rangefinders fit easily into any pocket.
With the new Leica Rangemaster CRF 2800.COM, Leica Sport Optics (Wetzlar, Germany) presents the first Leica rangefinder with integrated Bluetooth. Together with the specially designed smartphone app, this offers limitless freedom and precision.

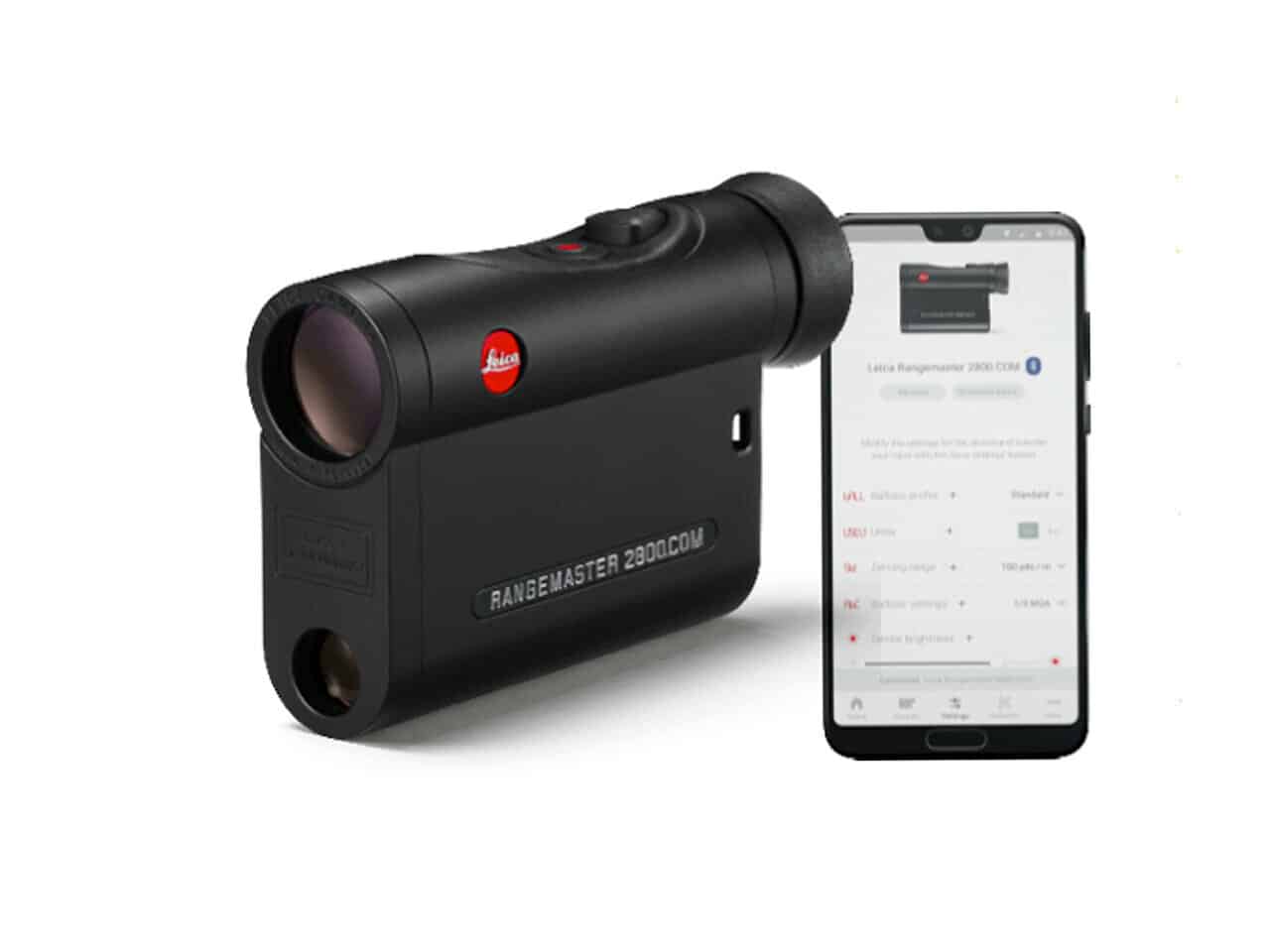

With the Leica Hunting app, developed especially for the CRF 2800.COM, individual ballistics settings can be configured conveniently on the smartphone. Leica’s own ABC ballistics program calculates the individual ballistic output values based on caliber, bullet type, trajectory and weight.
This data is transmitted via Bluetooth to the CRF 2800.COM, which calculates the exact ballistic distance and holdover correction, adjusting for temperature, air pressure and angle. Within mere fractions of a second, either the linear, equivalent horizontal range (EHR), the holdover, or the number of clicks are calculated and displayed on the riflescope.
The benefits at a glance
- Leica ABC ballistic system for maximum precision
- Three output formats: Click, Holdover and EHR
- Precise laser distance measurement up to 2,800 yds/2,600 m in only 0.3 s
- Light weight, compact size, and high-performance – thanks to Leica optical systems
Upload the Leica Hunting App to your smartphone now and enjoy all the advantages of comprehensive ballistic distance measuring – uphill, downhill and on the flat.
Pick the appropriate charge for your weapon in the Leica Hunting App and configure your own custom ballistic profile.
In fractions of a second, the Rangemaster CRF 2800.COM delivers the precise ballistic distance and holdover correction in the desired output format.
Barometric pressure, temperature and angle are factored into the calculation to ensure exact and reproducible measuring results.
Scope of delivery | Carrying cord, cordura case, battery |
Magnification | 7 x |
Front lens diameter | 24 mm |
Exit pupil | 3.4 mm |
Twilight factor | 13 |
Field of view at 1,000 | 115 m |
Eye-relief | 15 mm |
Objective angle of view | 6.6° |
Diopter compensation | ± 3.5 diopters |
Distance measurement: | |
Range | 10 to 2,700 yds / 10 to 2,500 m |
Equivalent horizontal range (EHR) | 10 yds to 1,200 yds / 10 m to 1,100 m |
Ballistic output values | 10 m to 875 yds / 10 m to 800 m |
Measuring accuracy | 10 up to 200 yds/m ± 0,5 yds/m 200 up to 400 yds/m ± 1,0 yds/m 400 up to 800 yds/m ± 2,0 yds/m over 800 yds/m ± 0,5 % |
Read-outs | LED display with 4 digits and symbols, ambient light controlled brightness control |
Eyepieces for eyeglass wearers | yes |
Eyecups | turn down rubber eyecups |
Prism system | Roof prism with phase correction coating P40 |
Coating | AquaDura® lens coating |
Watertightness | Watertight to a depth of 3.2 ft / 1 m |
Housing | Carbon fibre-reinforced plastic material |
Dimensions (W x H x D) | 4.5 x 2.25 x 1.25 in / 113 x 75 x 34 mm |
Weight | approx. 6.7 oz / 189 g incl. battery |
Meter/Yard Selector | yes, optionally yards/inches or meter/centimeter |
Laser | Eye-safe invisible laser according to EN and FDA class1 |
Laser beam divergence | approx. 0.5 x 2.5 mrad |
Measuring time | maximum approx. 0.3 s |
Measuring mode | Scanning mode, single measurement |
Interface | Bluetooth, micro-SD card, SD card adapter included in scope of delivery |
Software | Leica Hunting App |
Power supply | 1 x 3 V/Lithium-type C2R |
Battery lifetime | approx. 2,000 measurements at 20 °C / 68 °F |
