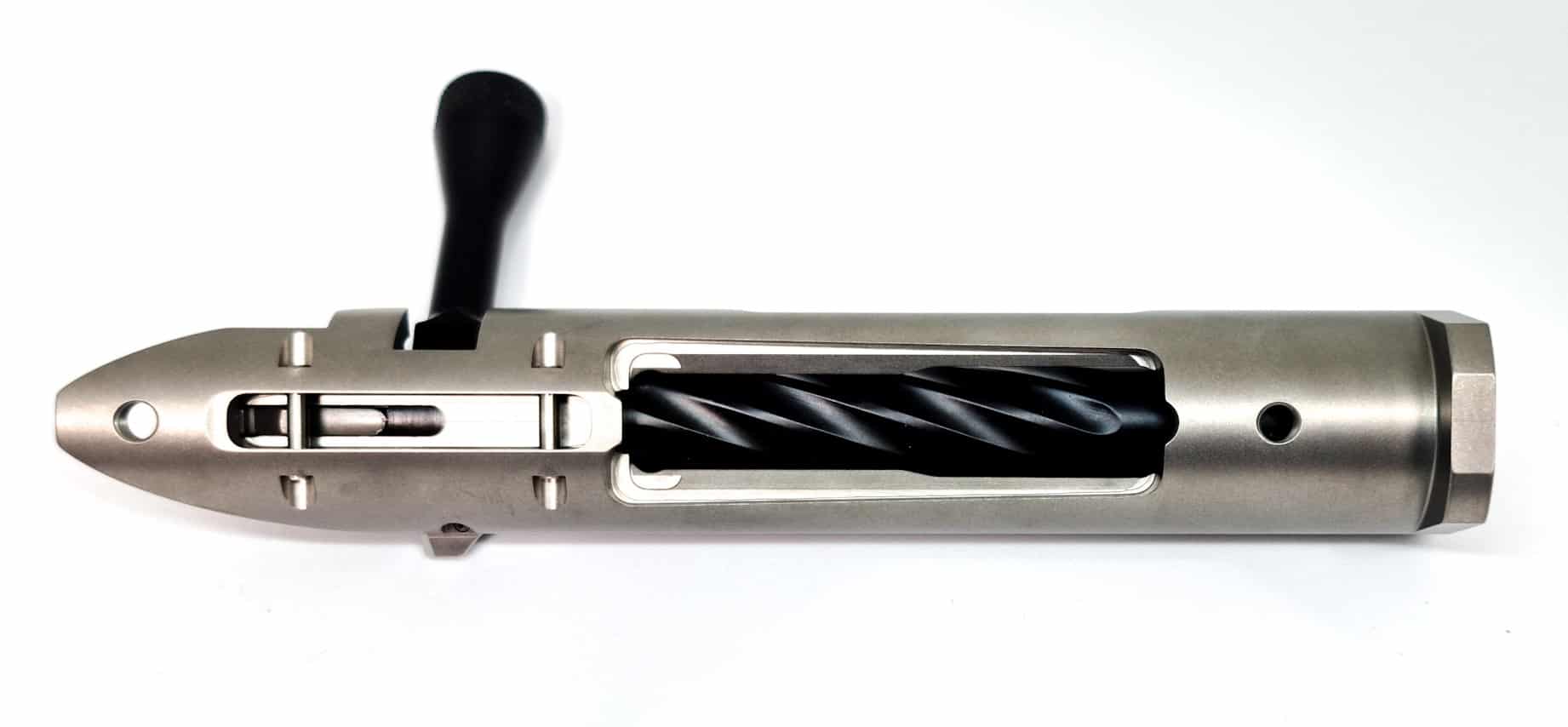

The RAZOR Ti Titanium

• Long Action Repeater
• Magnum Bolt Face
• 20MOA Picatinny Rail

The RAZOR-Ti is built for those looking for an accurate, lightweight action that delivers a half pound reduction in weight versus a stainless action. The RAZOR-Ti action is built with 6Al – 4V grade titanium and is priced very competitively. Available in long and short action configurations.

SPECIFICATIONS

Available in long, medium and short action Remington 700™ footprint configuration with BDL magazine cut. Each action is cut from premium 6Al-4V titanium.

• Receiver raceway cut with wire EDM to precise tolerances

• Magazine well cut for Wyatt extended mag box. Remington standard boxes also compatible

• Wyatt internal overall length–MBE-3 Long Action Box(3.825″), Medium Action(3.225”), MBE-4 Short Action(2.995″)

• Medium Hawkins BDL bottom metal, Mag box, spring, follower and action screws available from LPA- $295

• Side bolt release

• Bases secured with 8-40 screws and two anti-sheer pins

• Integrated recoil lug

• 1.350″ diameter

• Long action weight including bolt assembly- 21.5 ounces

• Short action weight including bolt assembly- 20 ounces

• Right or Left hand configurations available

• 1 1/16″x16 tpi barrel thread tenon

One piece fluted bolt constructed from pre-hardened 4340 chrome moly

• Mini M-16 style extractor

• Plunger ejector

• Light weight firing pin assembly provides fastest locktime with .060” diameter firing pin.

• Threaded bolt handle provides ability to interchange bolt knobs

• Nitride surface finish is standard on the bolt.
