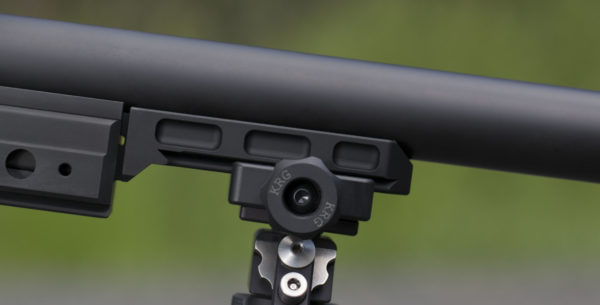

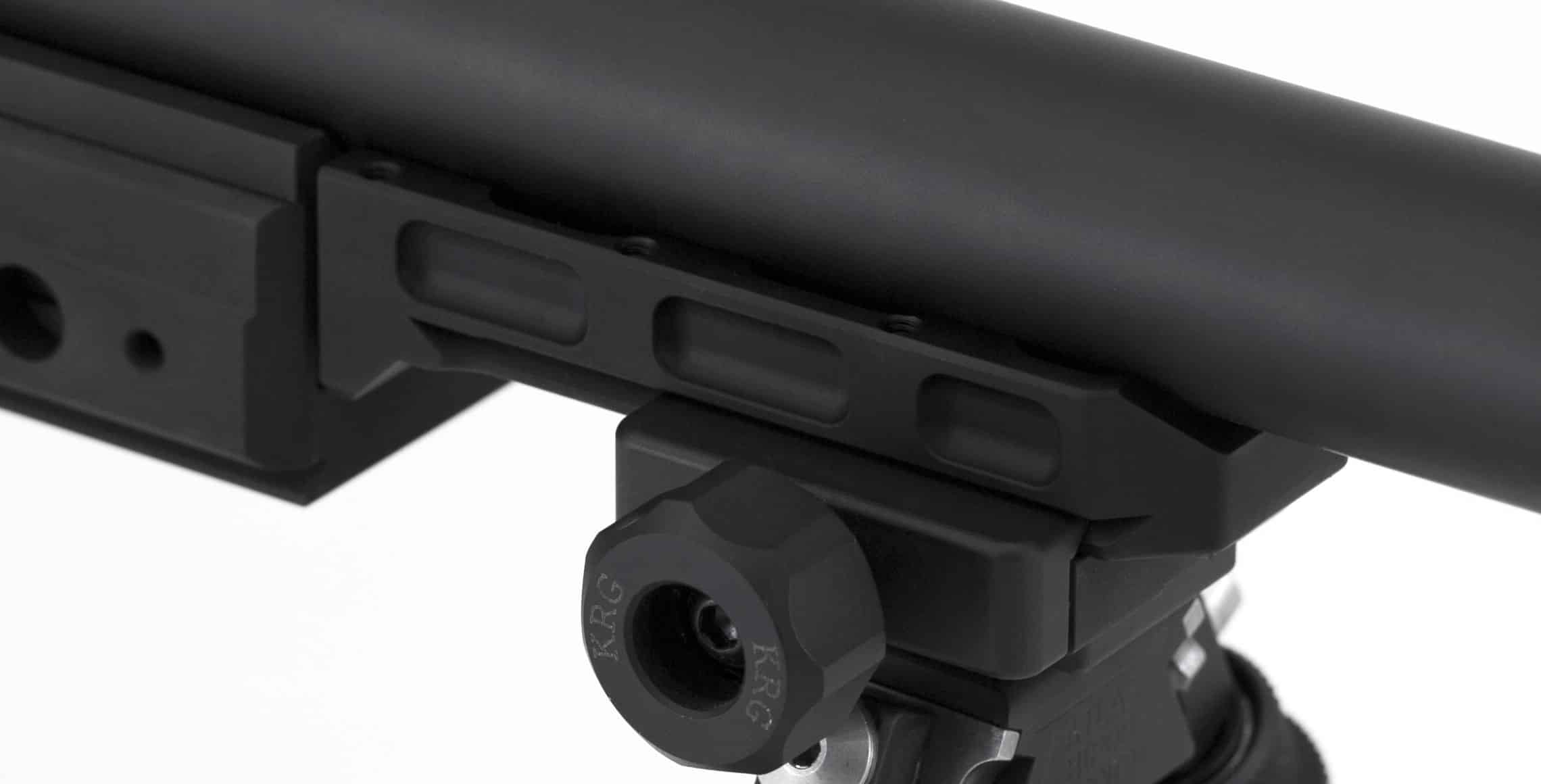

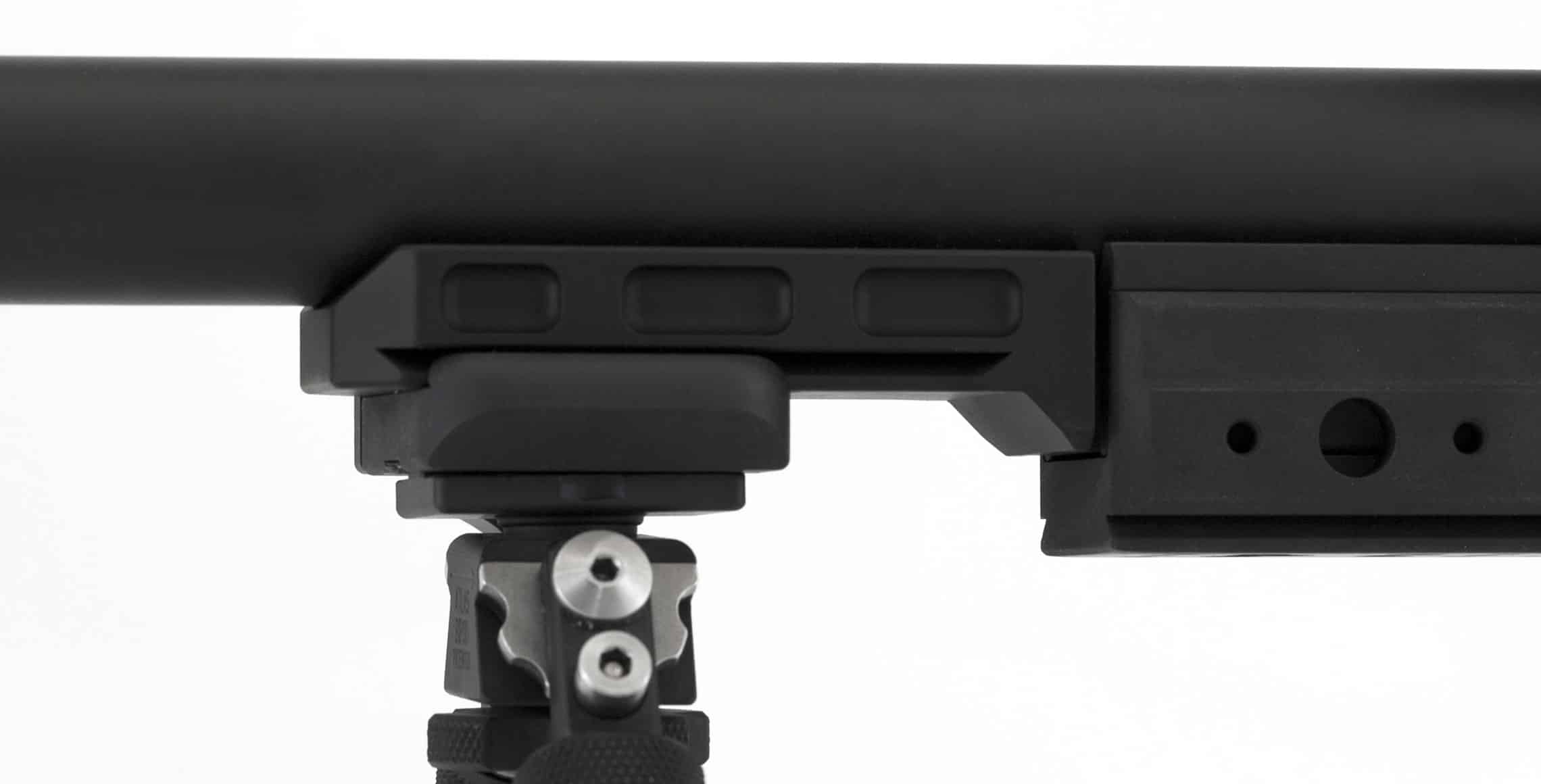

The Arca Spigot Mount is a modified version of the standard KRG Spigot Mount. It has an Arca rail cut into it so you can use all the various Arca clamps and items right on your KRG Spigot Mount. The Spigot Mount is one of our most popular accessories as it allows all kinds of mounting options for your Whiskey-3, X-ray, or Bravo chassis from NV mounts to sling mounts and more. Like the standard Spigot, it features a bolt-on installation into the slot at the front of the chassis.

Furthermore, the Arca Spigot can move a bipod closer to the bore by about an inch and further toward the muzzle approximately five inches from the regular chassis forend.

The Arca Spigot Mount provides the following Mounting options:

Built in Arca rail for quick, modular, accessories mounting

A mounting position for a MOE L2 rail at the 6 o’clock.

Has mounting positions on the 3 and 6 o’clock our Offset QD Plate.

Positions for inline Direct Harris Bipod mounts to keep your Harris bipod from rotating.

Fits: Whiskey-3 (gen 3 and later), X-ray, and Bravo chassis

It mounts into your Whiskey-3, X-Ray or Bravo chassis with minimal interference into the barrel channel, so larger barrel diameters can be accommodated more easily.

Materials/Finishes:

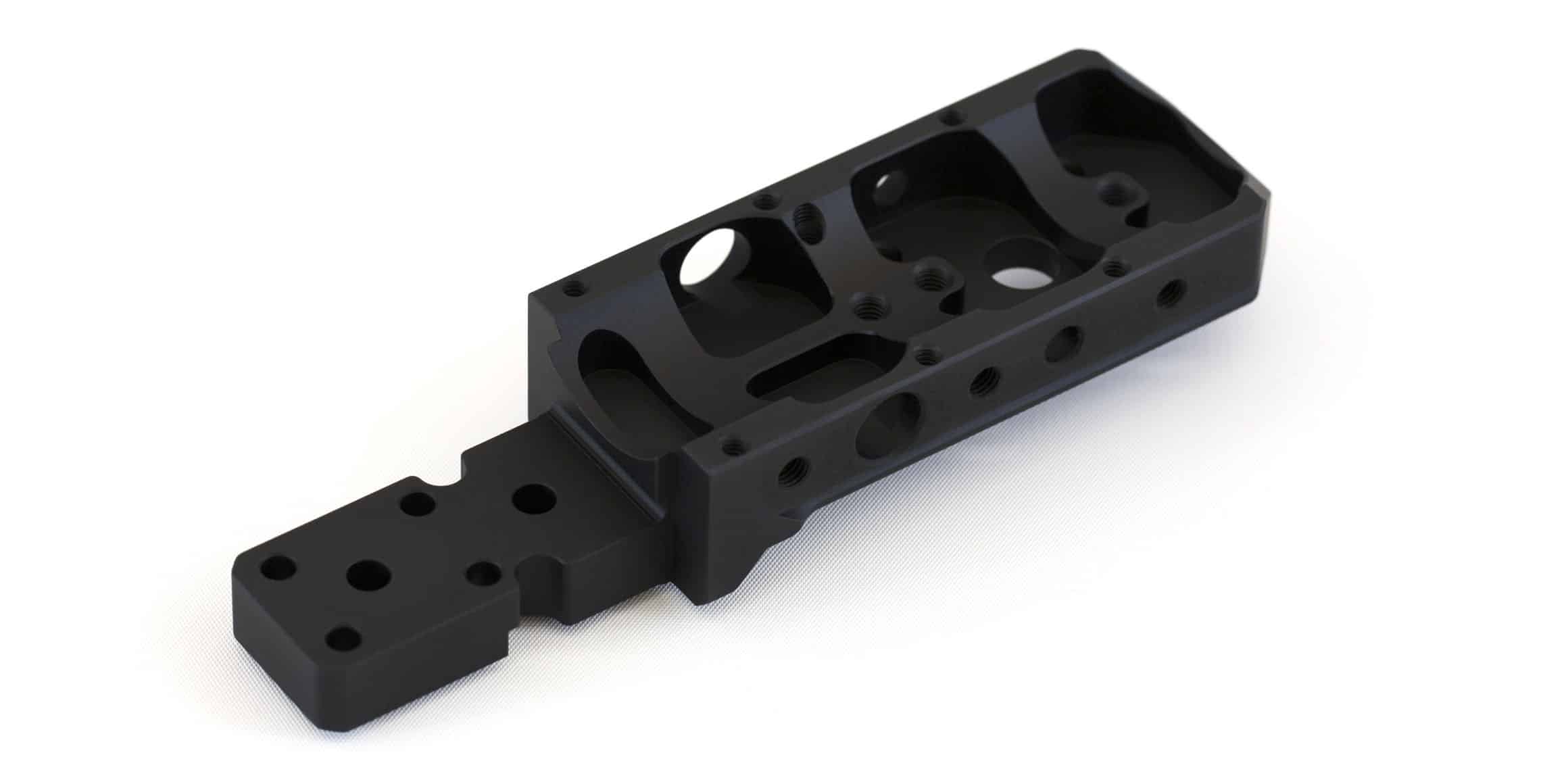

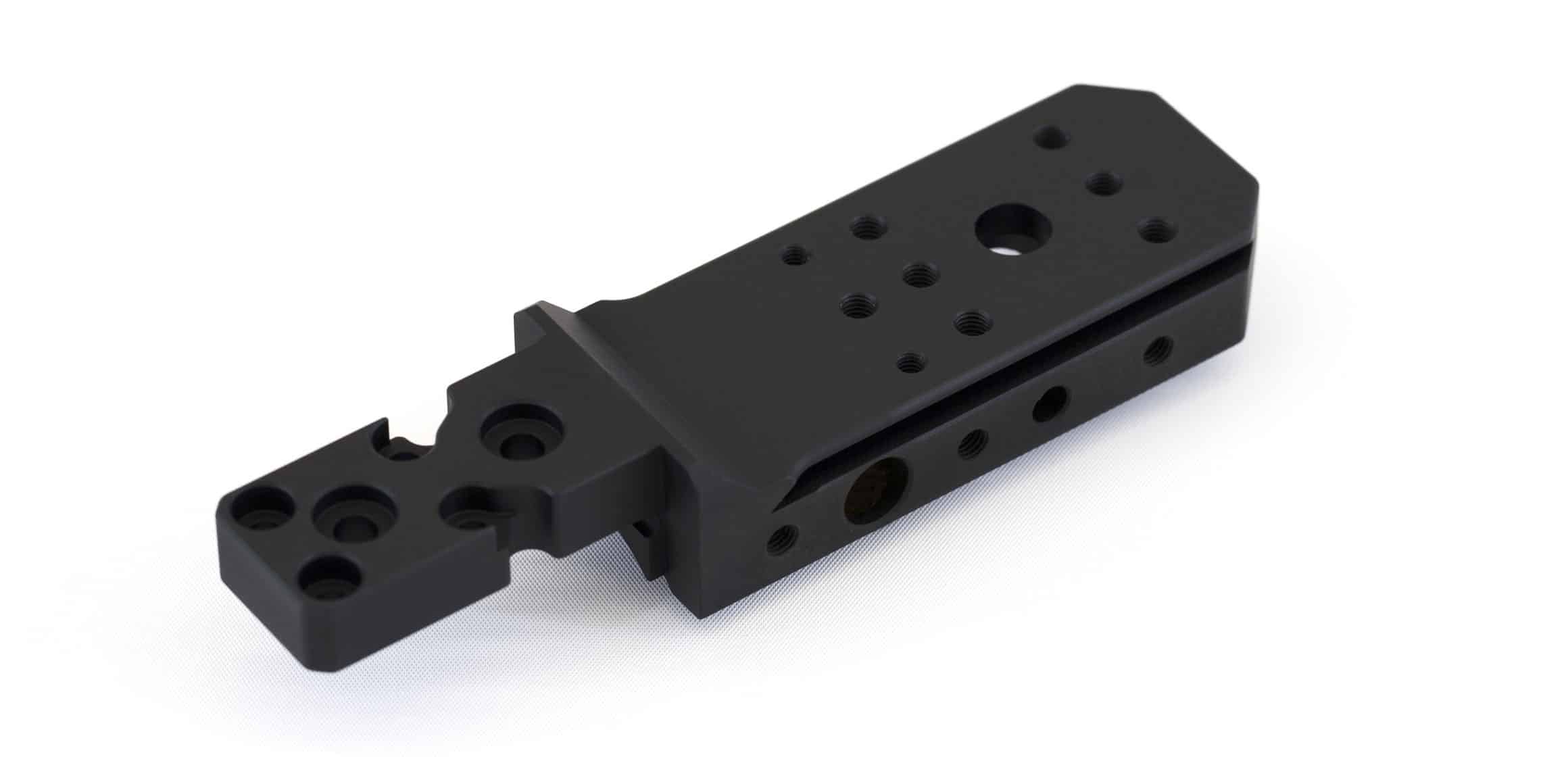

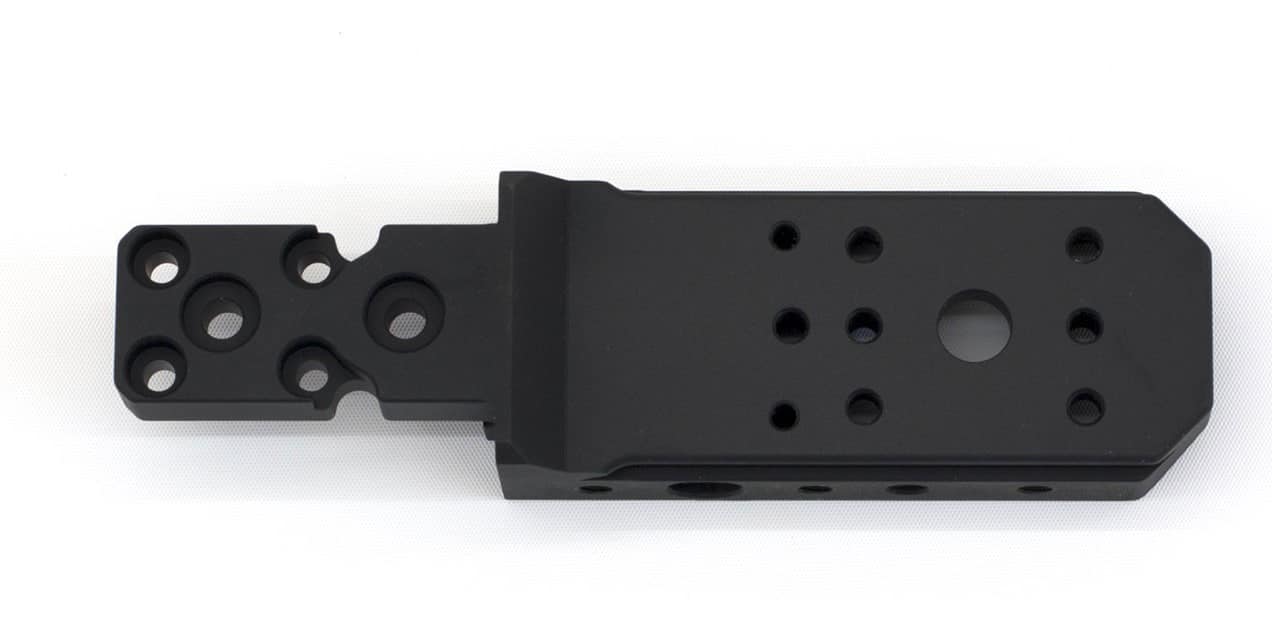

Machined aluminum billet with mil spec hard anodize.

Comes with fastener pack for different mounting options.

Installation/Tools needed:

Hex wrenches (metric).

Forend will need to be removed and barrelled action may or may not need to be removed for installation.

Restrictions: Not compatible ARCA Clamp with our QD Plate or L2 rail mounted in the 3 and 6 o’clock positions. Also the Arca Spigot does not fit a Sako TRG.

Weight: 4.8oz

Material: 6061 Aluminum

Made by KRG

*Not compatible with Enclosed Forend

*Does not work with 10/22 Bravo

*Our standard QD Plate and L2 rail will cause clearance issues with ARCA Clamps when mounted in the 3 and 6 o’clock positions.
