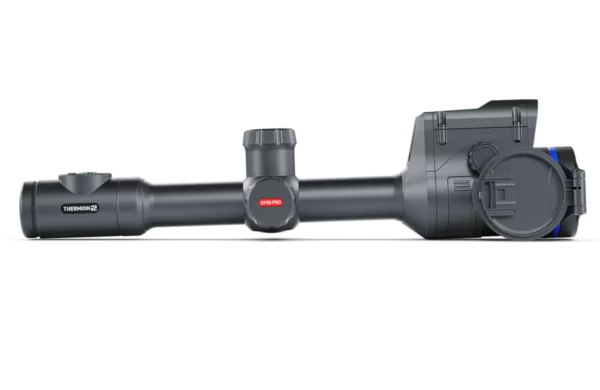

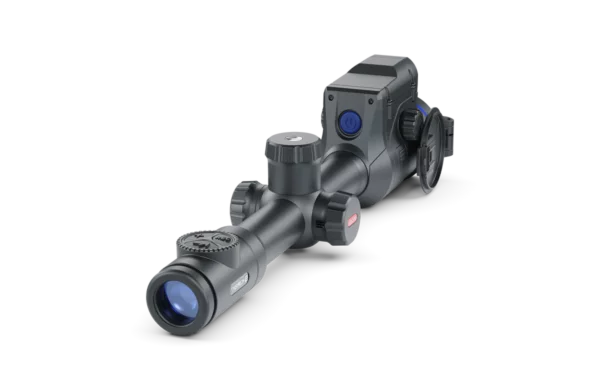

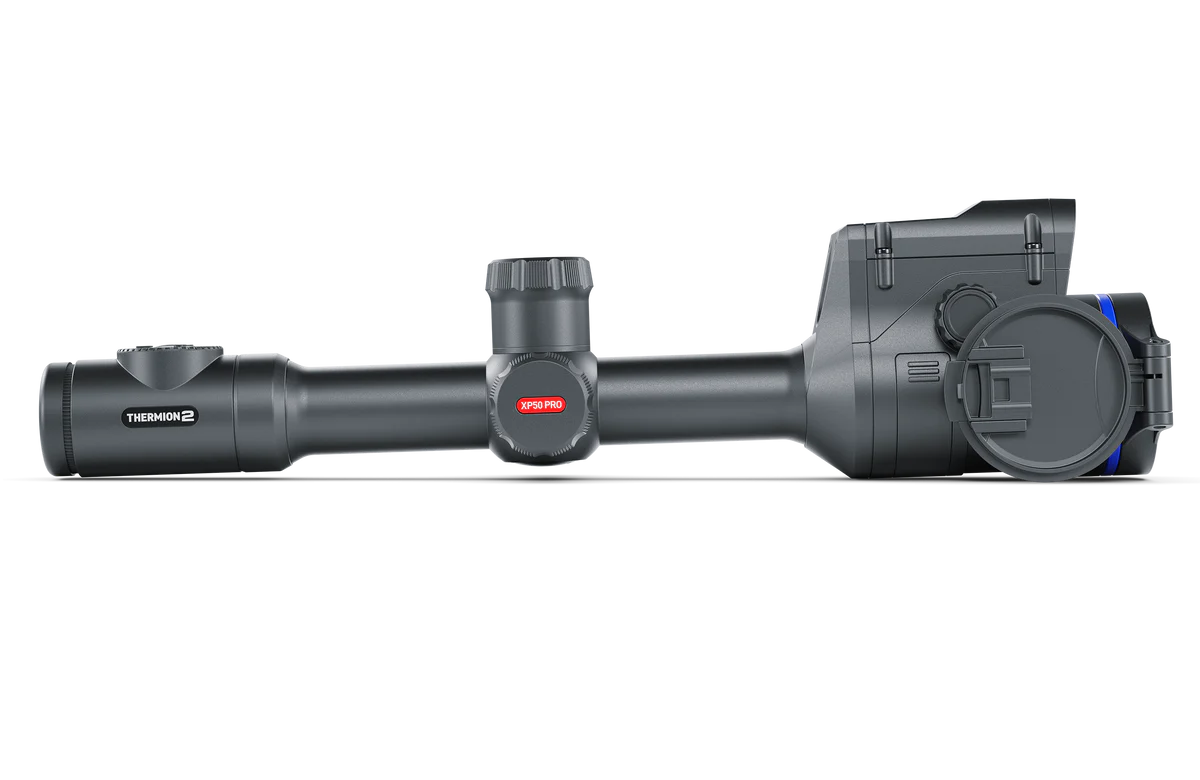

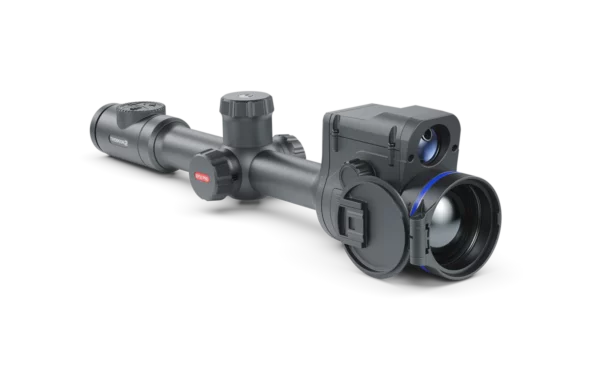

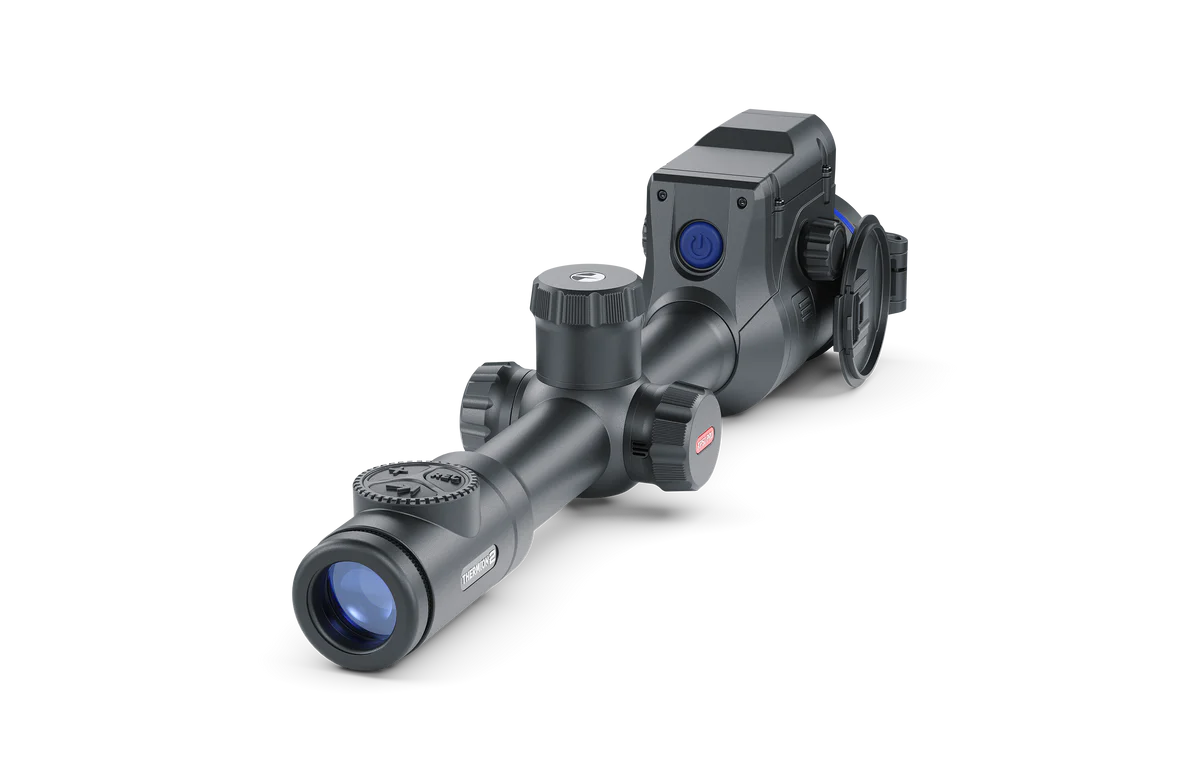

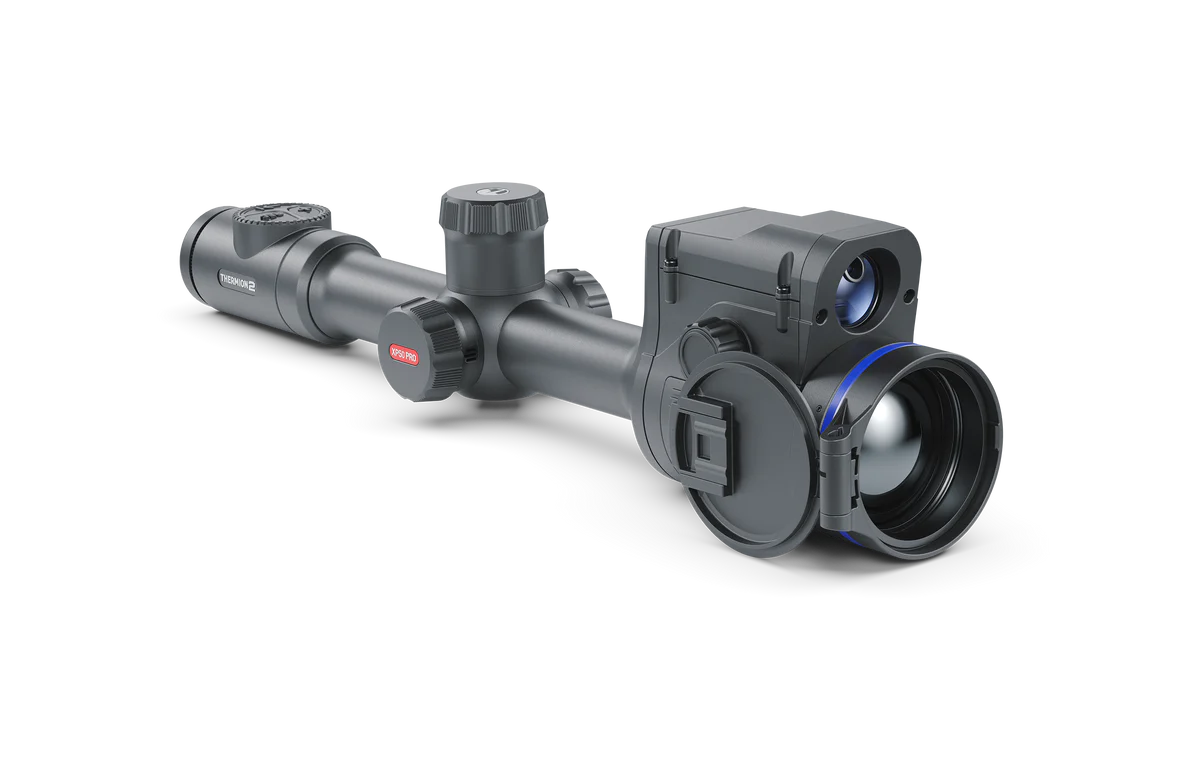

The first thermal imaging riflescope with classic design and built-in laser rangefinder
The laser rangefinder is seamlessly integrated into a slim design riflescope. The rangefinder is compact, the receiver and emitter are within clearance limits of a single optical channel. The measuring range is 800 meters – the Thermion 2 LRF XP50 Pro provides the hunter with an accurate sense of distance at the hunting site helping to take a precise shot.
High Definition Thermal Sensor 640×480 pixel @ 17 µm
Sharp, richly contrasted thermal imaging for enhanced identification of animals, their extremities and even the smallest details, i.e. branches, leaves, grass and terrain.
Unprecedented Thermal Sensor Sensitivity
Thermal imaging sensor with NETD <25mK ensures perfect detail recognition even in the hardest weather conditions when thermal contrast is low. The smallest temperature differences will be clearly visible during the rainfall, fog or cold mornings in the most difficult conditions for thermal imaging.
Fast Aperture Lens F50/1.0
The characteristics of thermal imaging optics have a decisive influence on a thermal imager’s ability to capture even the lowest radiation levels. Ultimate detection efficiency is achieved with the fast lens of the Thermion 2 LRF XP50 Pro (F50/1.0) thermal imager in combination with the highly sensitive thermal sensor. The Thermion 2 LRF XP50 Pro gives users the best quality, most detailed & high-contrast, informative imagery every time, even during rain or fog, when the temperature contrast of the observed scene is minimal.
Long detection range up to 1800 m
A powerful long-distance F50/1.0 objective lens combined with a 640×480@17µm highly-sensitive thermal imaging sensor provides exceptional detection capabilities. A standard 1.8m tall object can be detected up to 1800 m away in complete darkness.
Up to 10 hours of battery life on a single charge
The Thermion 2 LRF XP50 Pro is powered with two rechargeable batteries: one built-in with a capacity of 4.9 Ah, the other replaceable with a capacity of 2 Ah. A single charge guarantees up to 10 hours of battery life, which covers the time of active use of the scope for a hunt. The embossment on the body of the replaceable battery for accurate determination of the correct position makes it possible to quickly and confidently replace a flat battery with a new one in complete darkness by touch.
High-precision ambidextrous lens focusing
Objective lens with internal focusing mechanism gives a clear and sharp image at any range. Ergonomic focusing wheels are located on the right and left sides, making focusing easy either left- or right-handed.
- Main Sensor – 640×480 @ 17 µm (NETD <25 mK)
-
Objective lens – F50/1.0
-
Magnification, x 2-16
-
Field of view (HxV), 12.4×9.3 / 21.8×16.3 degrees / m@100m
-
Detection range, 1800 m
-
Sensor Type – uncooled
-
Frame rate, 50 Hz
-
Eye relief, 50 mm
-
Display Type – AMOLED
-
Resolution, pixels – 1024×768
-
Laser Rangefinder Safety class for laser equipment according to IEC 60825-1:20141
-
Wavelength, 905 nm
-
Max. measuring range, 800 m
-
Measurement accuracy, ± 1m
-
Reticle – Click value, H/V, mm at 100 m 21 / 21 (on minimum magnification)
-
Click range, H/V, mm at 100 m 4200 / 4200
-
Number of preloaded reticles – 10+
-
Video / photo resolution, 1024×768 pixel
-
Video / photo format .mp4 / .jpg
-
Built-in memory, 16 GB
-
Wireless Protocol – Wi-Fi
-
Wireless Standard IEEE 802.11 b/g/n/ac
-
Frequency, 2.4 / 5 GHz
-
Bluetooth Wireless Protocol BLE 4.2
-
Wireless Standard IEEE 802.15.1
-
Degree of protection,IPХ7 (waterproof) IP code (IEC60529)
-
Operating temperature range, -25 – +50°С
-
Max. recoil power on rifled weapon (Eo), 6000 Joules
-
Shock resistance on the smooth-bore rifles, 12 caliber
-
Mounting brackets on weapon – Standard 30 mm rings
-
Remote control – Pulsar BT (optional)
-
Supported Application – Stream Vision 2
-
Power Supply Output voltage, 3.0 – 4.2 V
-
Battery type Dual Li-Ion B-Pack Mini Power System: 2 A·h Changeable Battery (external) / 4.9 A·h Battery (internal)
-
Capacity, 2000 (external) + 4900 (internal) mAh
-
Operating time on battery pack (at t=22°C), 10 h *
-
External power supply, V USB type С (5V)
-
Body material – Aluminum alloy
-
Dimensions,420×78,5×94,5 mm
-
Weight, 0.97 kg
