Tube Rail Kit – BT33

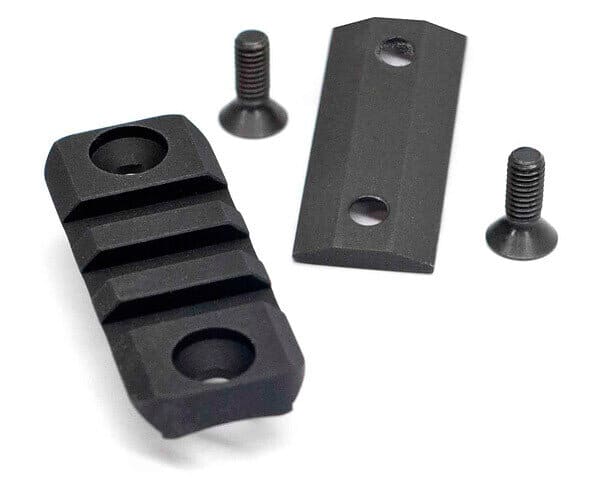

The TUBE RAIL KIT, part number BT33 consists of a Steel Bar Nut that is designed to fit inside free float tubes and a low profile 1913 Picatinny rail 5.1cm (2.050″) long with a 1.00 radius back and 1.602 between the two holes and two fasteners. This BT33 TUBE RAIL KIT is installed with the Steel Bar Nut inside the free float tube and the 1913 Picatinny rail on the outside with the matching holes aligned, fastened together, they allow the attaching of the BT10 or BT 10-LW17 Atlas Bipod or other accessories to free float tubes.

This rail is made from 6061T6 Aluminum with a type III hard coat anodize, The Steel Bar Nut has a manganese phosphate finish and both are proudly made in the USA
