Whiskey 3 Chsassis (W3C) GENERATION 6

New Generation 6 Version – The major change is a new length-of-pull locking mechanism that is a bit more streamlined than the gen 5.

Changes for Gen 5:

• Forend changed to polymer, weight reduced and magazine well stop incorporated, additional mounting points added
• Triggerguard changed to polymer on Remington versions
• Mag release button changed to Polymer to reduce inertia
• Aluminum backbone lightened
• Additional fore/aft mounting points added to cheekpiece
• Cheekpiece thumbscrew now captured and molded polymer
• Tool-less adjustment for buttpad height and cant added
• Reduced weight over 1/2 poun

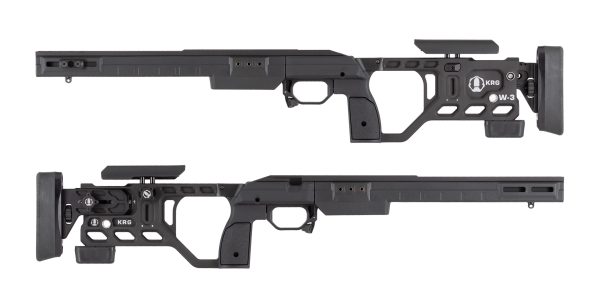

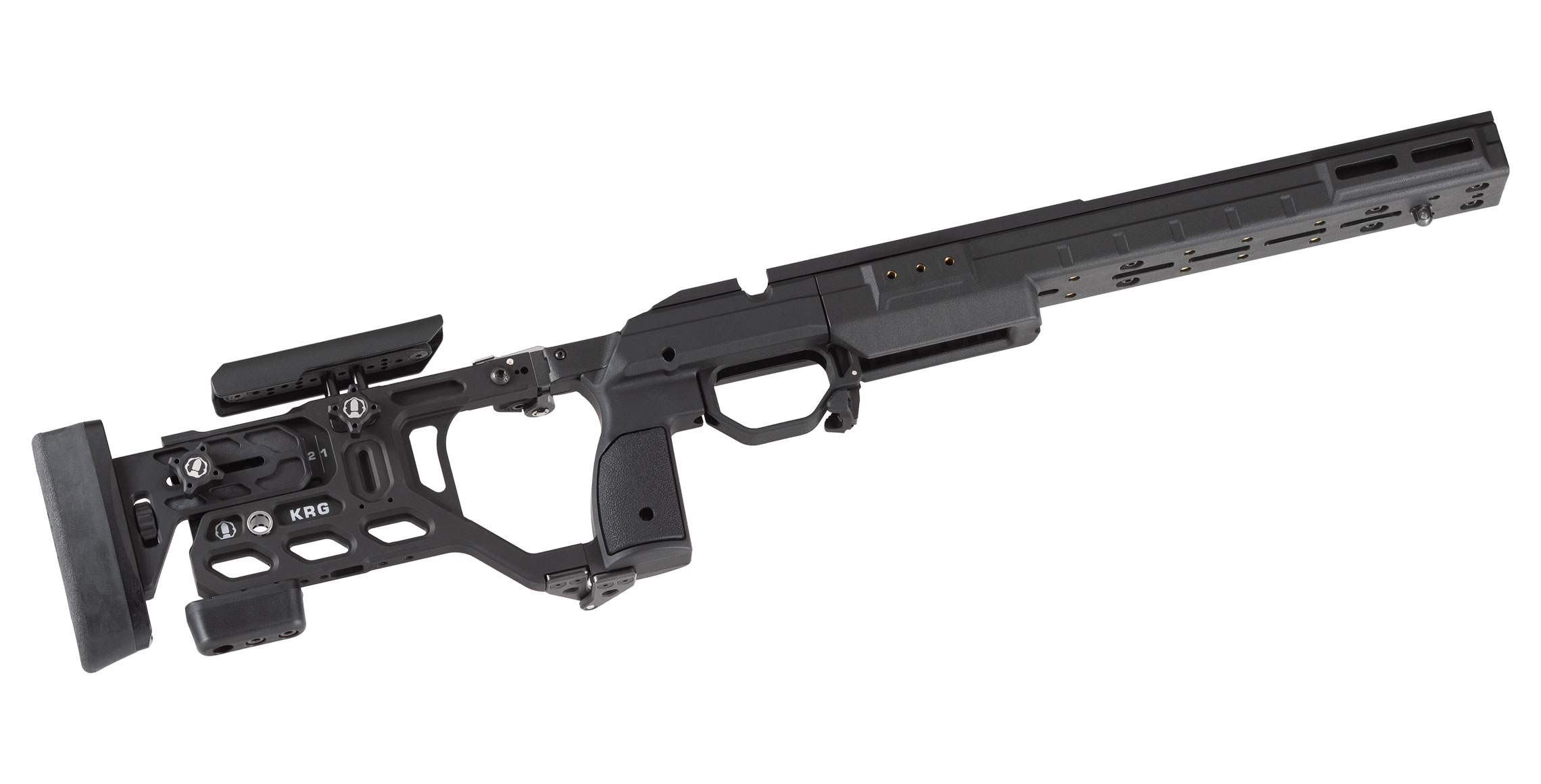

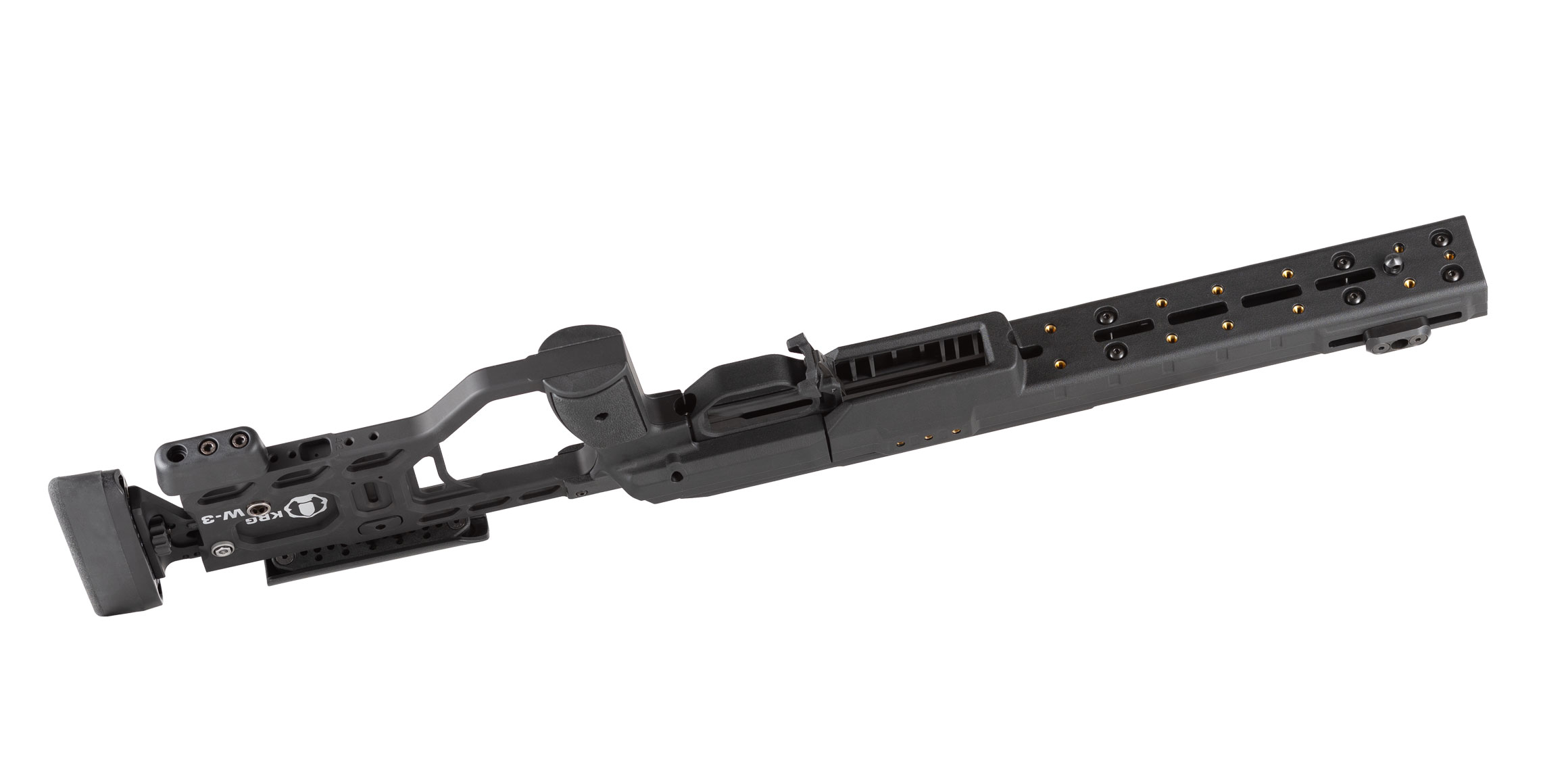

The Whiskey-3 Chassis (W3C) (Generation IV Chassis) is a highly functional, feature laden stock for the Tikka T3, Remington 700, and other rifles. The W3C combines precise aluminum “V” bedding with tool-less adjustments, (length-of-pull and cheek piece height), durability and excellent ergonomics. Right out of the box it allows the use of AICS style magazines in your rifle without any special bottom metal. Numerous types of accessories can be added to the many attachment points, including handstops, sling mounts, rails, bipods, monopods, and more. Our modular grip panels allow the shooter to tailor the fit of the stock to his/her hand which, combined with the other adjustments, yield a stock set up exactly as it needs to be for that particular shooter.

Bravo Chassis

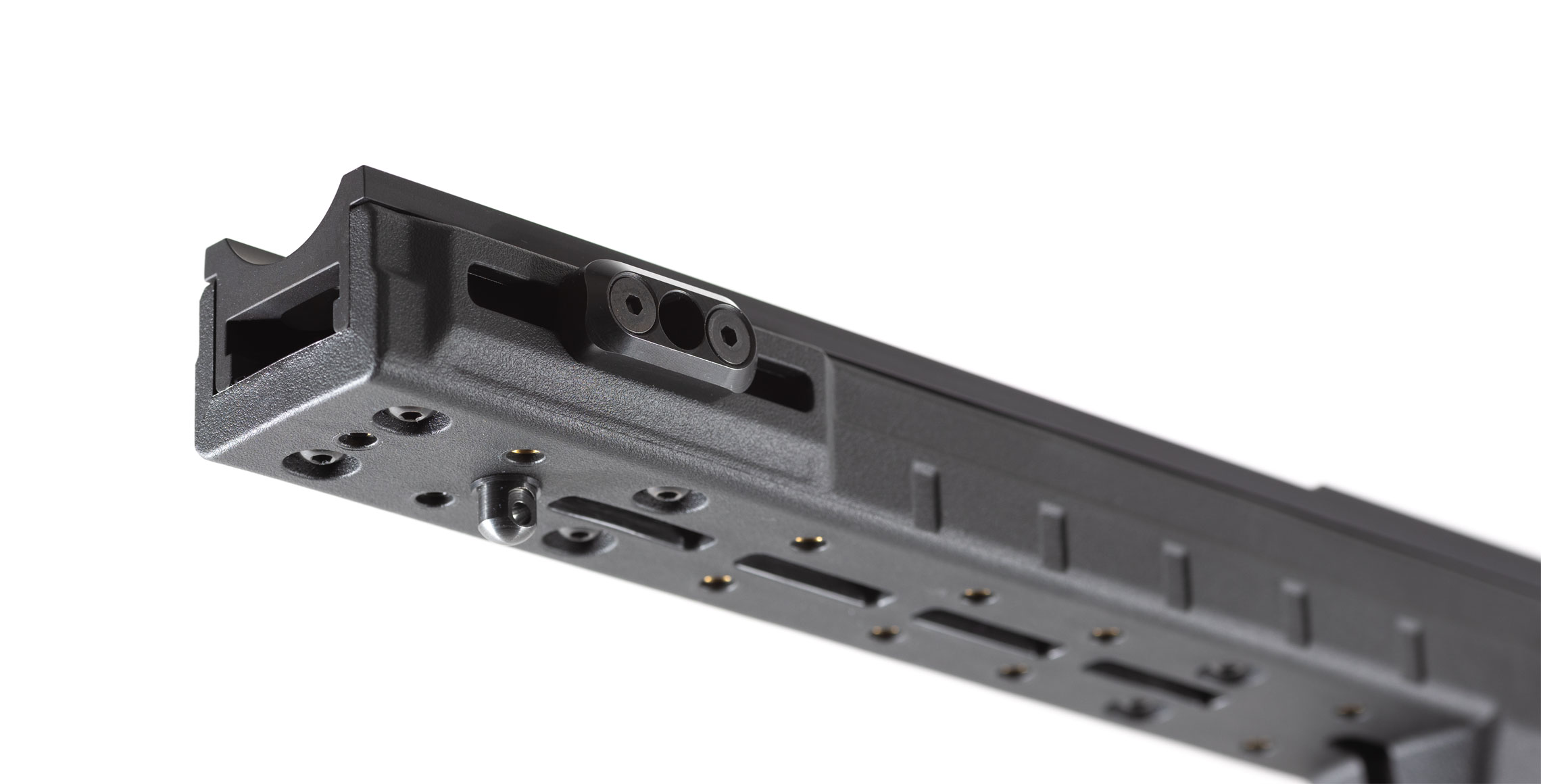

The Whiskey-3 Chassis (W3C) (Generation IV Chassis) Forend:

• Aluminum, designed for ergonomic feel.
• Threaded mounting holes at various positions, total of 15-18.
• Access hole for action mounting screw, so you can remove the action without removing forend.
• Side mounting options for rail, flush mount QD sling plate, external QD cup, or NV mount on both sides of forend.

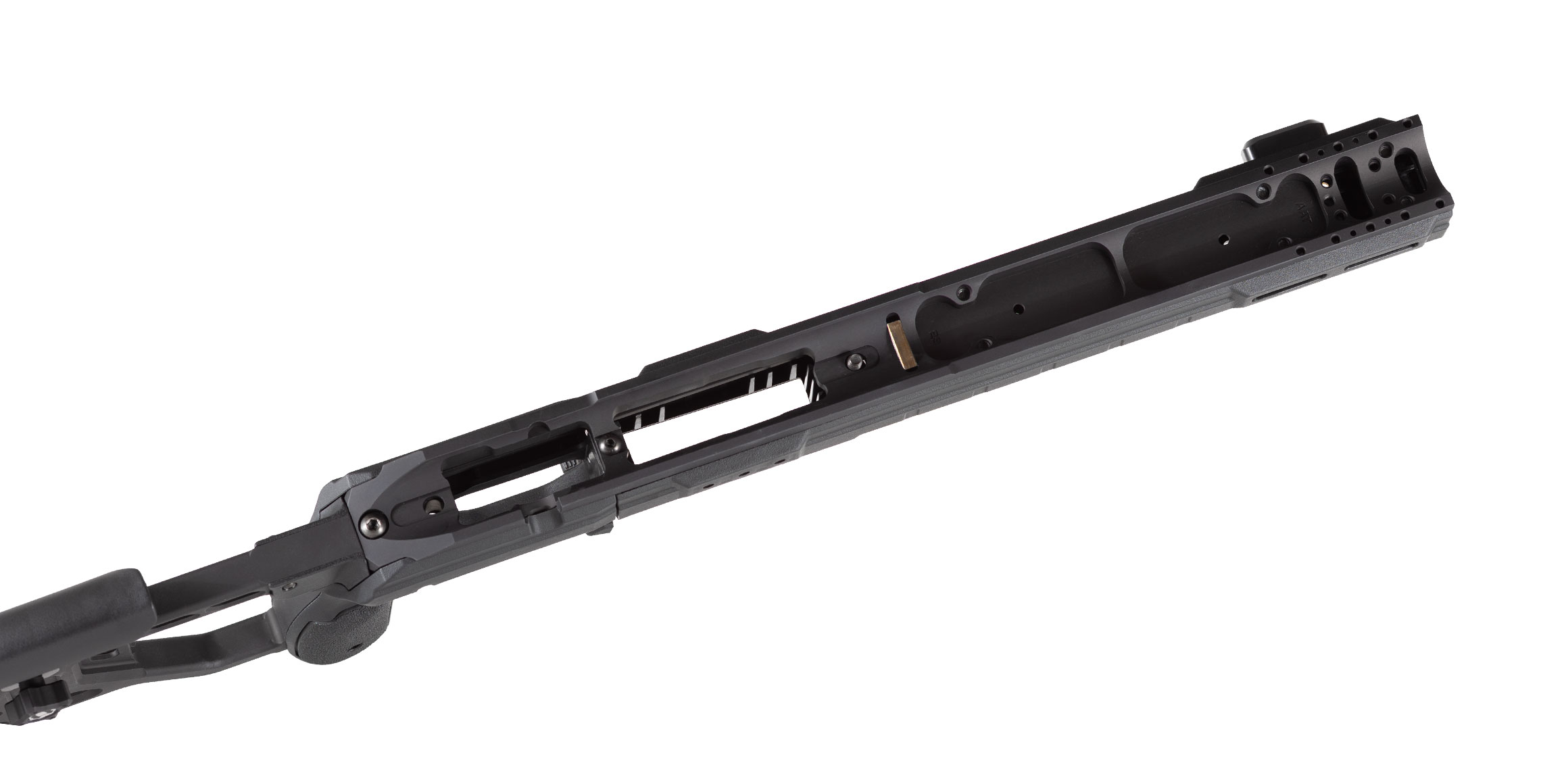

“Backbone”/Chassis:

• V-bedding system which is CNC’d into aluminum for consistent contact between action and chassis.
• Hardened stainless steel recoil lug instead of aluminum ones found on stock T3’s.
• Rem 700 version can accommodate some thicker aftermarket recoil lugs, larger ones will require inletting.
• Designed for 5 or 10 round AICS magazines (with or without front spacer plate in T3, with spacer plate only in Rem 700 unless you have a modified action).
• Will accept any barrel contour up to 1.15” straight cylinder.(Will take standard 1.25″ barrel shank and have clearance for that diameter out to about 4″ past action face)

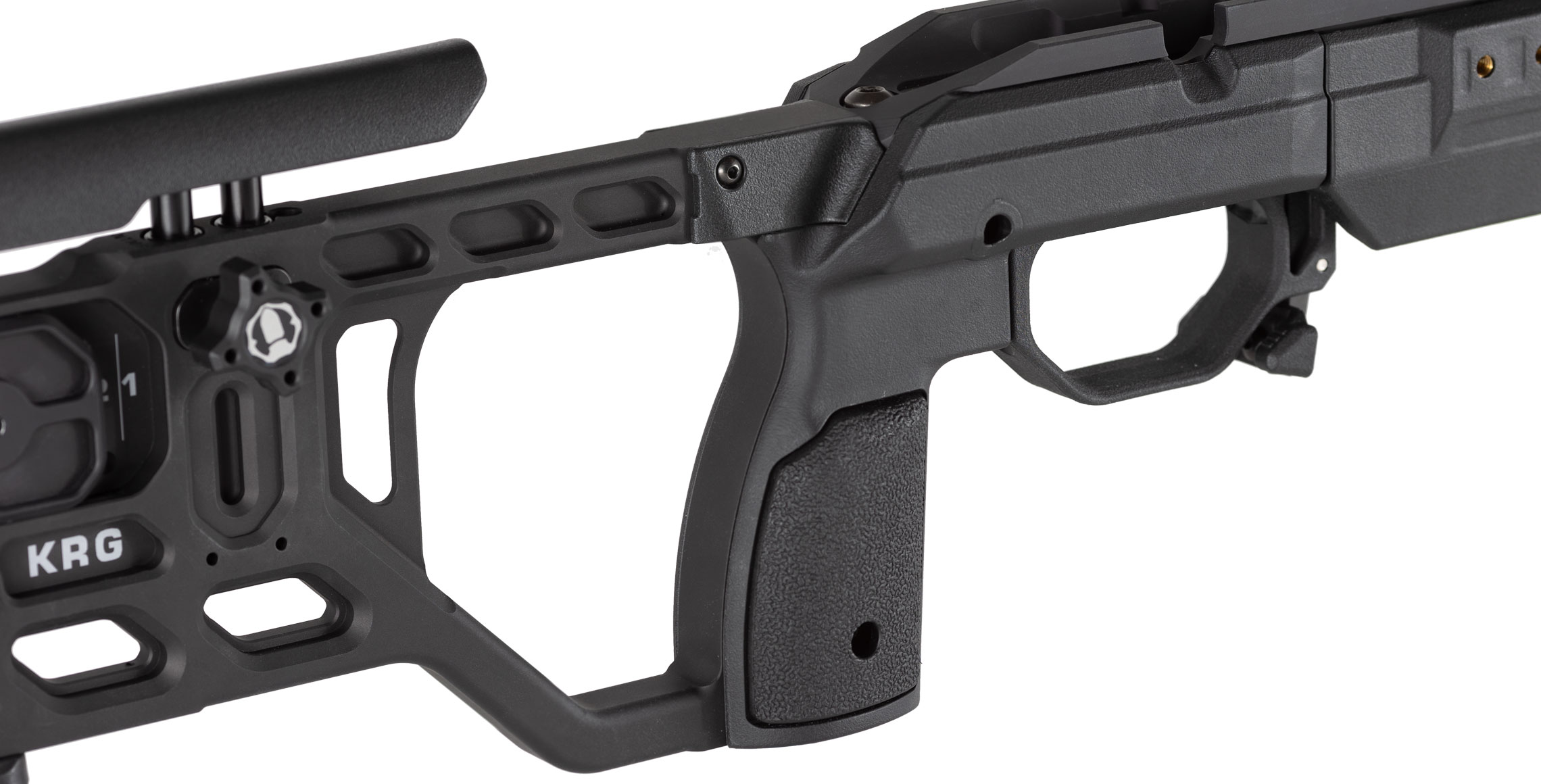

Trigger Guard/Mag catch:

• Moulded or machined light weight trigger guard
• T3 version will accept Barnard trigger for T3 as well as factory trigger.
• Rem 700 version will accept the new x-mark triggers and nearly all aftermarket triggers but some aftermarket triggers may require modifications to the trigger or chassis. (Tubb 2 stage trigger will not work)
• Optional mag catch extender button available in our “Accessories” section

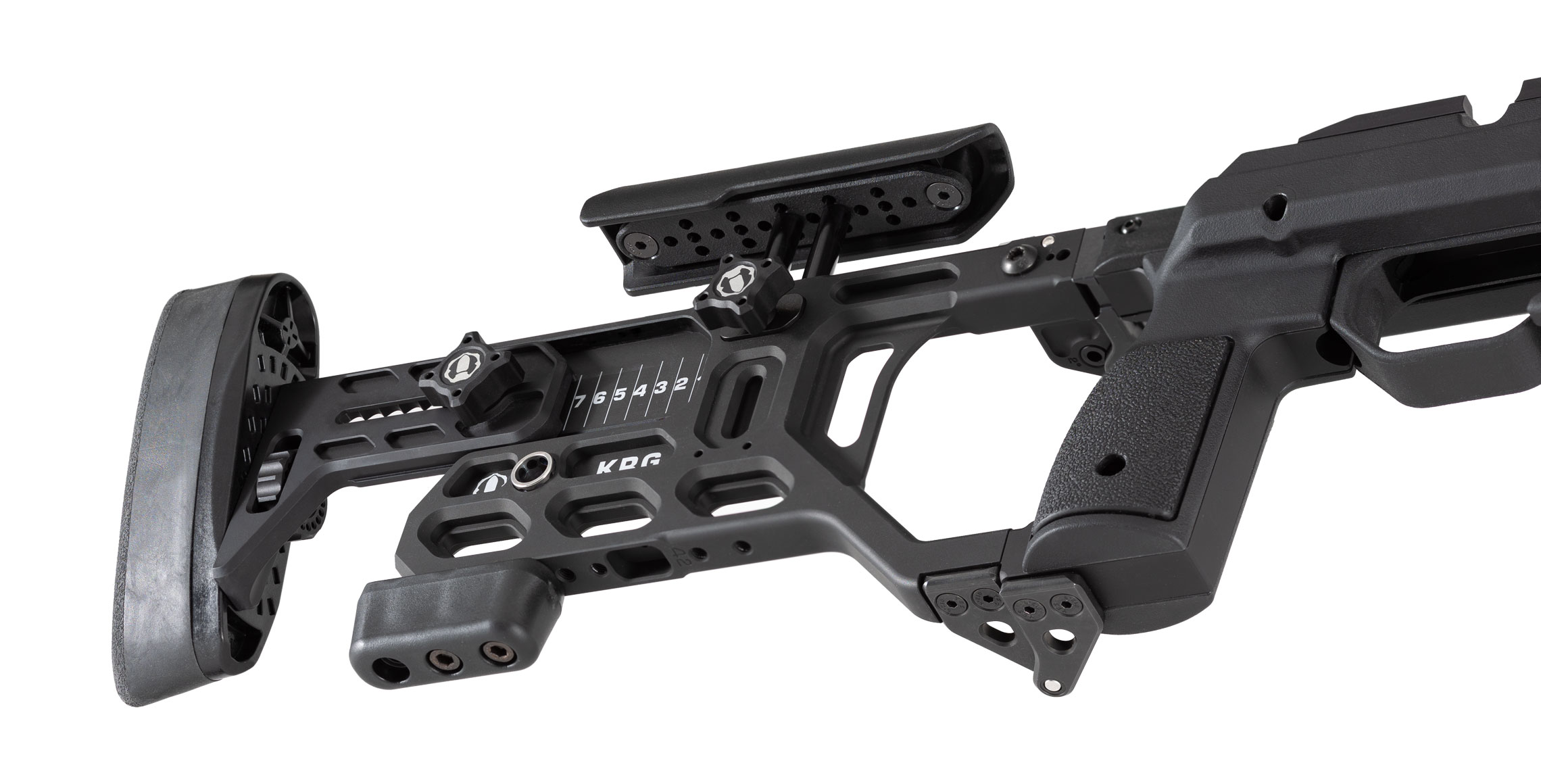

Cheekpiece:

• Infinitely adjustable within range (~1” travel).
• Can be quickly removed and re-installed, uses a clamp and thumbscrew design.
• Made of polymer to limit heat transfer to or away from your face.

Length of Pull (LOP):

• Adjustable with spacers in 3/8″ increments with nearly 2 1/4” of adjustment range.
• LOP range varies slightly between versions but is roughly 12.8” to 15” (technically even longer is possible with even more spacers).
• Bravo’s include our 1-3 LOP kit which includes 3 spacers and the hardware to mount either 1, 2, or 3 allowing a max LOP of about 14″

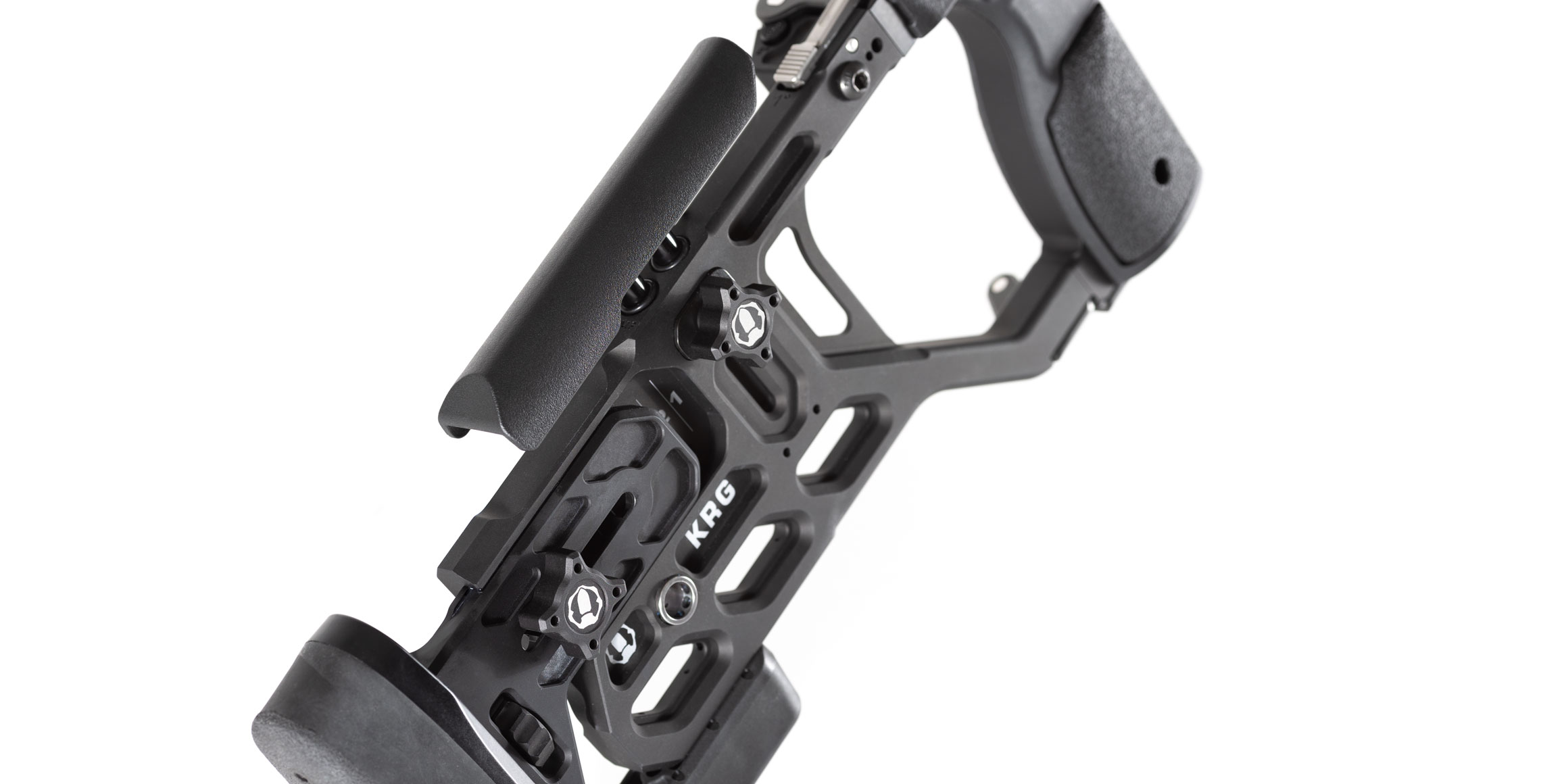

Buttstock:

• Very strong reinforced polymer material.
• Mounting points for external QD cup.
• Built in thumbshelf for same-side-thumb-grip shooters.
• Can be configured with a continuous angled lower surface or a “butthook” configuration
• Modularity with X-ray and Whiskey-3 back ends, either of those will fit on Bravo and vice versa

Recoil Pad:

• Premium KRG designed pad that is light, durable, and comfortable to shoot.
• Remington 700 pattern so user can install aftermarket pre-fit pads if preferred.

Mounting features for slings, monopods, etc:

• Forend has M-LOK slots on each side and bottom along with other holes for mounting KRG accessories
• Buttstock has one position on each side for external QD cup (1 ea included).
• Buttstock includes angled cover with the “Butthook” cover sold separately
  Harris bipod stud included on forend.
• Spigot Mount can be added to front of chassis.
• Ambi QD sling plate can be mounted and provides 3 positions for QD sling or HK hook sling attachments.

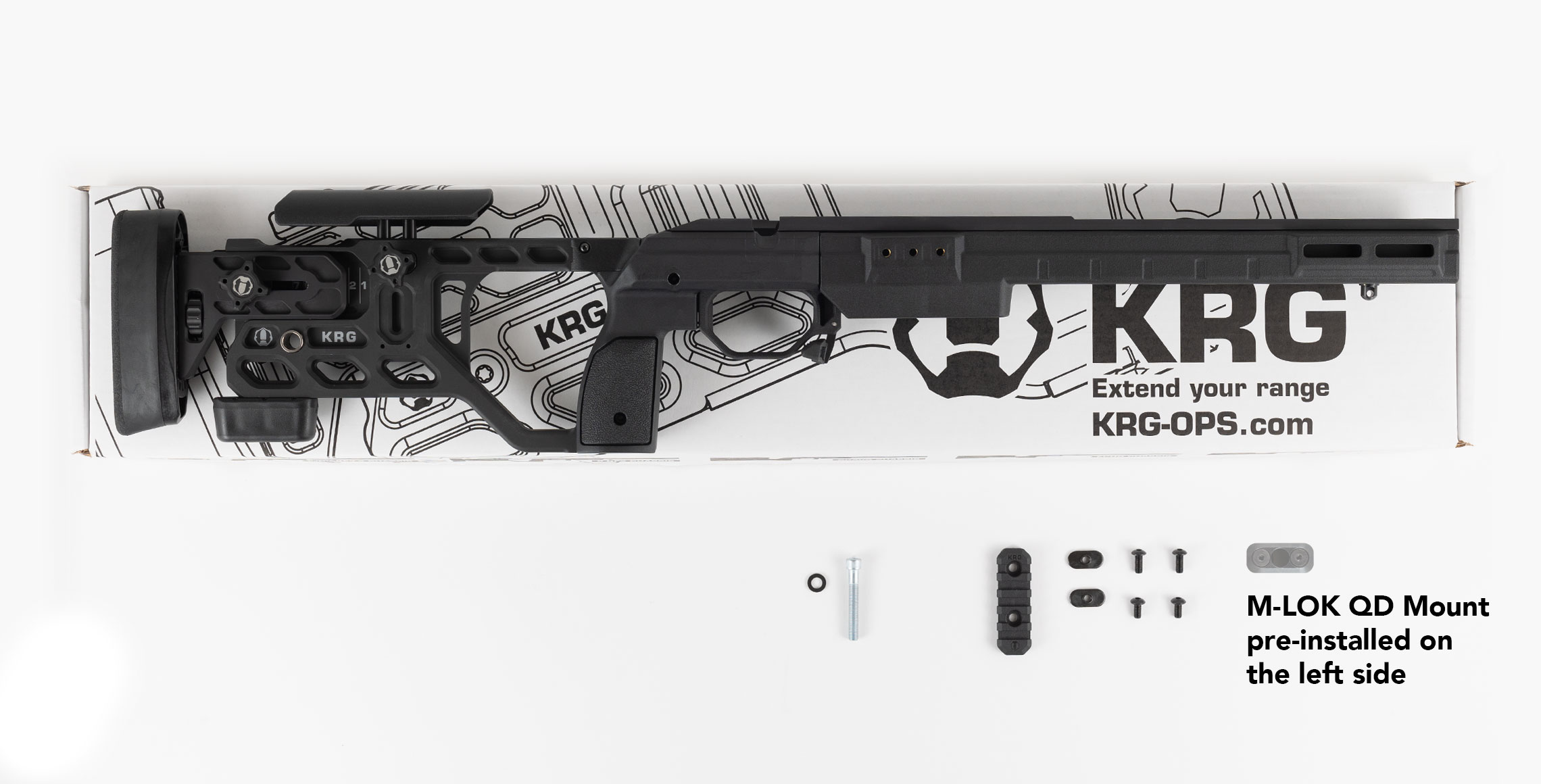

Optional Accessories:

• Large selection of accessories from sling mounts to tripod mounts.
• ***All stocks come with 1 ea MOE L2 rail (made by Magpul)

Materials/Finishes:

• Aluminum parts are hard anodized (Type III).
• Nearly all fasteners are stainless steel, some with black oxide coating, some are without.
• Steel parts are salt bath nitrided or stainless steel.
• Forend and buttstock are injection molded reinforced polymer.

Weight:

• 1.32KG (2.9 lbs) w/o magazine.

Color:

• Black, FDE (tan), Sako Green
